Display |
RoHs compliant. |
|
|

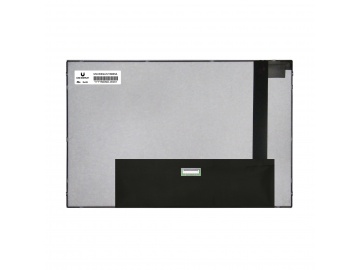

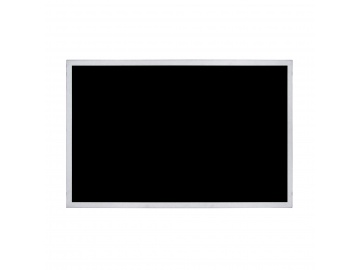

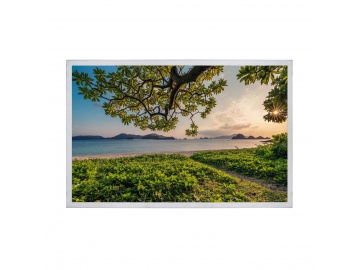

LCM model |
UNI-WXGA121N005A
|
|
|
Display Mode |
IPS，Normally Black |
|
|
Viewing Angle |
80/80/80/80 |
Typical |
|
Contrast ratio |
1200:1 |
Typical |
|
NTSC |
70% |
Typical |
|
Resolution |
1280 RGB(H)×800(V) |
Number of Dots (HxV) |
|
Pixel Pitch |
0.2034(H)×0.2034 (V) |
mm (HxV) |
|
Active Area |
260.35(H)×162.72(V) |
mm (HxV) |
|
Module Dimension |
277.70(H)×180.60(V)×6.1(T) |
mm(HxVxT) |
|
Display Interface |
MIPI |
|
|
Brightness |
(Typical)1000cd/m2 |
Built-in（LED_PWM） |
|
Life Time(Backlight) |
LED 50K hrs. |
|
|
Operating temperature |
-30 ~ +80 |
℃ |
|
Storage temperature |
-30 ~ +80 |
℃ |
Important Note：
◎ If Purchaser intends to use this products for an application which requires higher level of reliability and/or safety in functionality and/or accuracy such as transport epuipment（e.g. medical，aircraft，train，automobile，etc.），disaster-prevention/security equipment or various safety equipment，Purchaser shall consult UNI DISPLAY on such use in advance.
◎ The system integrator of the prodcduct is responsible for compliance of the required approvals.
◎ Technical specification subject to change without prior notice.
◎ For further information,please refer to detailed specification of individual component.
◎ If shall be mutuall conferred if nonconforming defect which result from unspecified cause in this specification arises.
