Display |
RoHs compliant. |
|
|

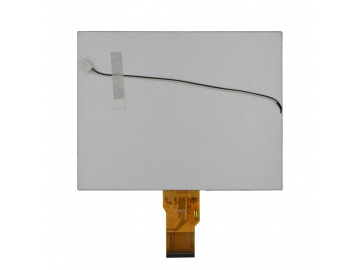

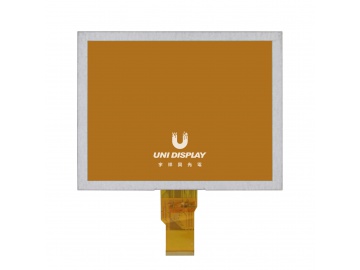

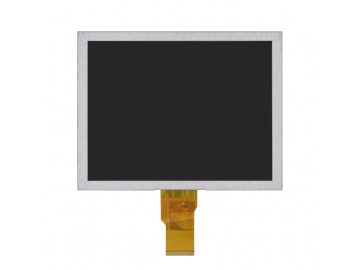

LCM model |
UNI-SVGA080N004A |
|
|
Display Mode |
Normally Black |
|
|
Viewing Angle |
85/85/85/85 |
Typical |
|
Resolution |
800xRGBx600 |
Number of Dots (WxH) |
|
Pixel Pitch |
0.2025(W)×0.2025(H) |
mm (WxH) |
|
Active Area |
162.00(W)×121.50(H) |
mm (WxH) |
|
Outline Dimension |
182.90(W)×141.00(H)×5.50(T) |
mm (WxHxT) |
|
Display Interface |
RGB（50pins） |
|
|
Brightness |
(Typical) 500cd/m2 |
|
|
Life Time(Backlight) |
LED 30K hrs. |
|
|
Operating temperature |
-20 ~ +70 |
℃ |
|
Storage temperature |
-30 ~ +80 |
℃ |
Important Note：
◎ If Purchaser intends to use this products for an application which requires higher level of reliability and/or safety in functionality and/or accuracy such as transport epuipment（e.g. medical，aircraft，train，automobile，etc.），disaster-prevention/security equipment or various safety equipment，Purchaser shall consult UNI DISPLAY on such use in advance.
◎ The system integrator of the prodcduct is responsible for compliance of the required approvals.
◎ Technical specification subject to change without prior notice.
◎ For further information,please refer to detailed specification of individual component.
If shall be mutuall conferred if nonconforming defect which result from unspecified cause in this specification arises
