Display |
RoHs compliant. |
|
|

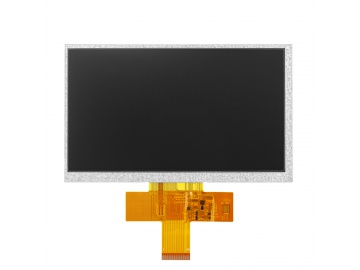

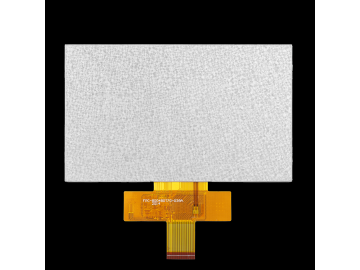

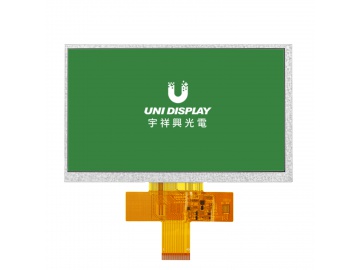

LCM model |
UNI-WVGA070N039A |
|
|
Display Mode |
Normally White |
|
|
Viewing Angle |
50/70/70/70 |
Typical |
|
Contrast ratio |
500:1 |
Typical |
|
NTSC |
72% |
Typical |
|
Resolution |
800(RGB)×480 |
Number of Dots (HxV) |
|
Pixel Pitch |
0.1926(W)×0.1790(H) |
mm (HxV) |
|
Active Area |
154.08(W)×85.92(H) |
mm (HxV) |
|
Outline Dimension |
164.9(W)×100(H)×5.7(T) |
mm (HxVxT) |
|
Display Interface |
24-bit Parallel RGB Interface |
|
|
Brightness |
(Typical) 500cd/m2 |
24LEDs(180mA/9.6V) |
|
Life Time(Backlight) |
LED 50K hrs. |
|
|
Operating temperature |
-20 ~ +70 |
℃ |
|
Storage temperature |
-30 ~ +80 |
℃ |
Important Note：
◎ If Purchaser intends to use this products for an application which requires higher level of reliability and/or safety in functionality and/or accuracy such as transport epuipment（e.g. medical，aircraft，train，automobile，etc.），disaster-prevention/security equipment or various safety equipment，Purchaser shall consult UNI DISPLAY on such use in advance.
◎ The system integrator of the prodcduct is responsible for compliance of the required approvals.
◎ Technical specification subject to change without prior notice.
◎ For further information,please refer to detailed specification of individual component.
If shall be mutuall conferred if nonconforming defect which result from unspecified cause in this specification arises
