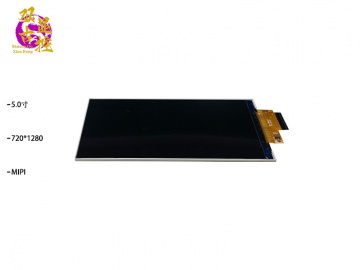

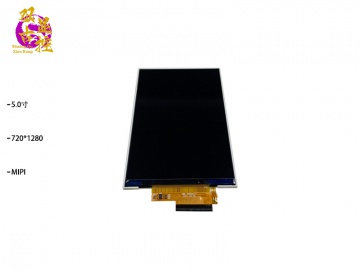

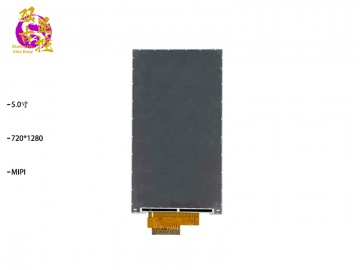

双古显控 5.0寸TFT液晶屏IPS屏 720*1280 40PIN MIPI接口 9:16 可配全贴合 触摸（工业仪器、家电、玩具、医疗类用TFT液晶显示屏）

ITEM

STANDARD VALUES

UNITS

LCD type

5.0” TFT

--

Dot arrangement

720(RGB)×1280

dots

Pixel Size

0.02875（H）×0.08625（V）

Color filter array

RGB vertical stripe

--

Display mode

IPS/ Transmission / Normally Black

-

Eyes Viewing Direction

85/85/85/85

--

Driver IC

ST7703

--

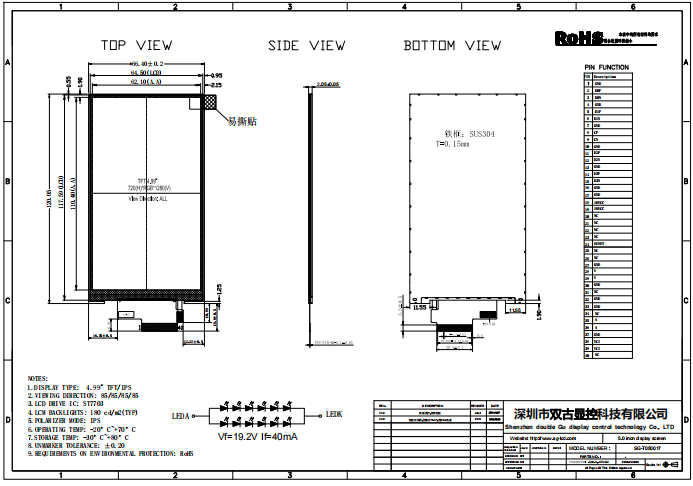

Module size

66.4(W)×120.05(H)×2.05(T)(Exclude FPC)

mm

Active area

62.1(W)×110.40(H)

mm

Interface

MIPI 4

--

Operating temperature

-20 ~ +70

°C

Storage temperature

-30 ~ +80

°C

Back Light

White LED*12

--

Surface Treatment

Bright face

Item

Symbol

MIN

TYP

MAX

UNIT

Test Condition

Supply Voltage

Vf

-

19.2

-

V

If=40mA

Supply Current

If

-

40

-

mA

-

Luminous Intensity

for LCM

-

150

180

-

cd/m²

If=40mA

Uniformity for LCM

-

80

-

-

％

If=40mA

Life Time

-

-

50000

-

Hr

If=40mA

Backlight Color

White
