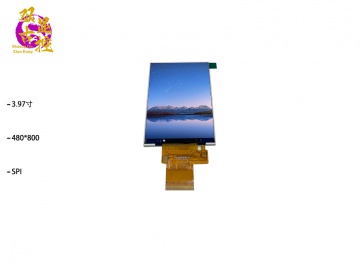

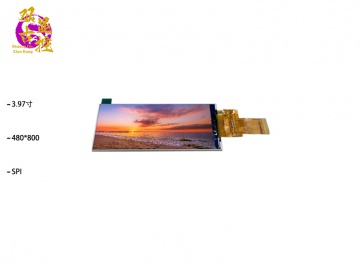

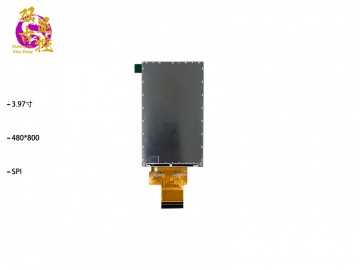

双古显控 3.97寸TFT液晶屏IPS屏 480*800 40PIN SPI+RGB接口 可配触摸（工业、家电、玩具、医疗类用TFT液晶显示屏）

ITEM

STANDARD VALUES

UNITS

LCD type

3.97 TFT

--

Dot arrangement

480(RGB)×800

dots

Color filter array

RGB vertical stripe

--

Display mode

IPS/ Transmission / Normally Black

-

Eyes Viewing Direction

80/80/80/80

--

Driver IC

ILI9806/G/X

--

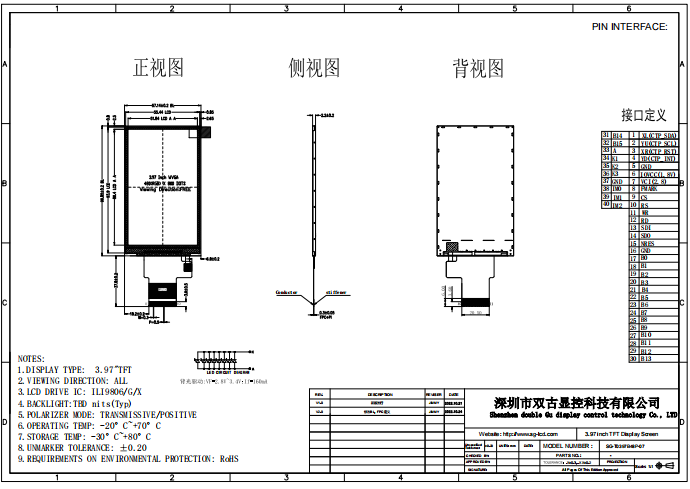

Module size

57.14(W)×96.85(H)×2.2(T)(Exclude FPC)

mm

Active area

51.84(W)×86.4(H)

mm

Interface

3SPI_RGB

--

Operating temperature

-20 ~ +70

°C

Storage temperature

-30 ~ +80

°C

Back Light

White LED*8

--

Item

Symbol

MIN

TYP

MAX

UNIT

Test Condition

Supply Voltage

Vf

-

3.2

-

V

If=160mA

Supply Current

If

-

160

-

mA

-

Luminous Intensity

for LCM

-

250

300

-

cd/m²

If=160mA

Uniformity for LCM

-

-

60

-

％

If=160mA

Life Time

-

-

50000

-

Hr

If=160mA

Backlight Color

White
