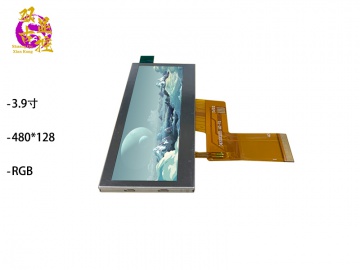

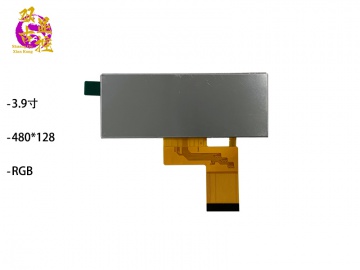

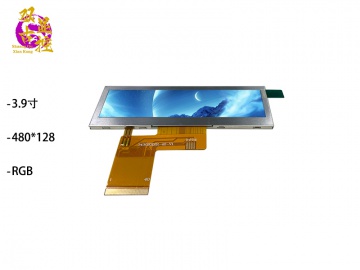

双古显控 3.9寸TFT条形液晶屏 480*128 RGB接口 500亮度 可配全贴合触摸屏 应用于（工业、家电、玩具、医疗类用TFT液晶显示屏）

ITEM

STANDARD VALUES

UNITS

LCD type

3.9’’TFT

--

Dot arrangement

480(RGB)×128

dots

Driver IC

ILI6480

--

Color filter array

RGB vertical stripe

--

Display mode

TN / Transmission / Normally White

-

Viewing Direction

12 O’clock

--

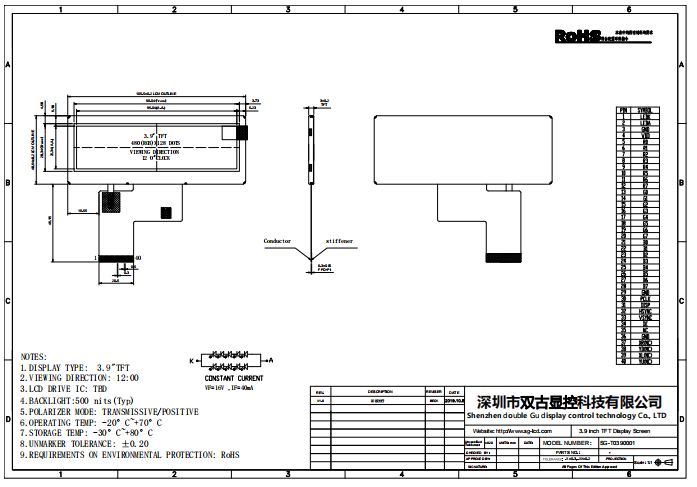

Module size

105.5(W)×40.64(H)×2.95(T)

mm

Active area

95.04(W)×25.34(H)

mm

Interface

24bit RGB

--

Operating temperature

-20 ~ +70

°C

Storage temperature

-30 ~ +80

°C

Back Light

White LED*10

--

Brightness

500Cd/m2

--

Weight

TBD

--

Item

Symbol

MIN

TYP

MAX

UNIT

Test Condition

Supply Voltage

Vf

15

16

17.5

V

If=40mA

Supply Current

If

-

40

-

mA

-

Luminous Intensity

for LCM

-

-

500

-

cd/m²

If=40mA

Uniformity for LCM

-

-

80

-

％

If=40mA

Life Time

-

-

50000

-

Hr

If=40mA

Backlight Color

White
