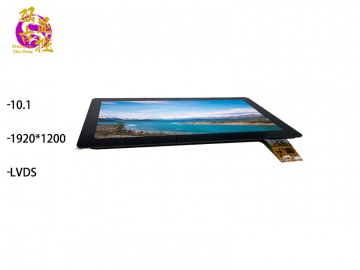

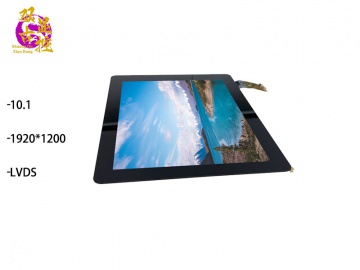

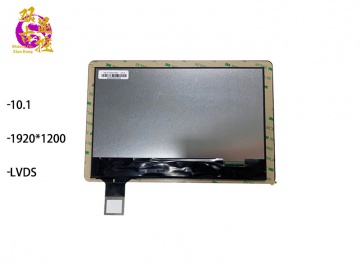

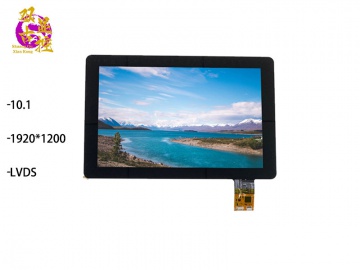

1. Technical parameters
1.1 LCM General Information
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
10.1TFT |
-- |
|
Dot arrangement |
1920(RGB)×1200 |
dots |
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
IPS/ Transmission / Normally Black |
- |
|
Eyes Viewing Direction |
85/85/85/85 |
-- |
|
Driver IC |
TBD |
-- |
|

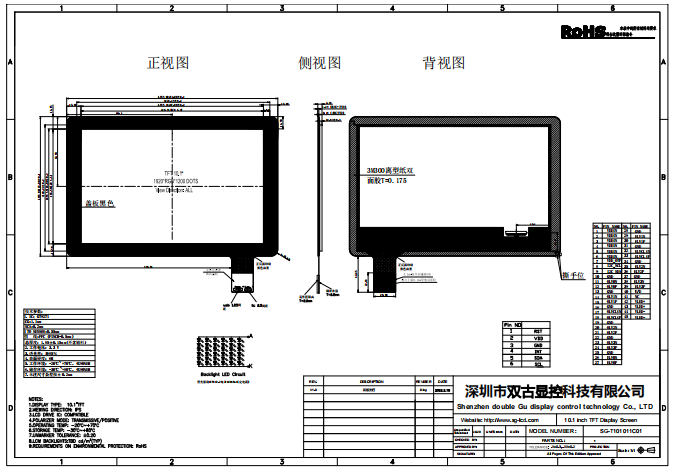

Module size |
229.45(W)×149.22(H)×2.83(T) |
mm |
|
Active area |
216.81(W)×135.50(H) |
mm |
|
Interface |
LVDS |
-- |
|
Operating temperature |
-20 ~ +70 |
°C |
|
Storage temperature |
-30 ~ +80 |
°C |
|
Back Light |
White LED*36 |
-- |
1.2 CTP General Information
|
CTP type |
10.1’ |
-- |
|
Outline Dimension |
251.00(W)×165.00(H)X4.98(T) |
mm |
|
Touch area |
217.00(W)×136.00(H) |
mm |
|
Max Number of Fingers |
6 point |
-- |
|
Driver IC |
GT9271 |
-- |
|
surface hardness |
6H |
-- |
|
Operating temperature |
-20 ~ +70 |
℃ |
|
Storage temperature |
-30 ~ +80 |
℃ |
|
Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
|
Supply Voltage |
Vf |
16.2 |
18 |
21 |
V |
If=120mA |
|
Supply Current |
If |
- |
180 |
- |
mA |
- |
|
Luminous Intensity for LCM |
- |
- |
- |
- |
cd/m2 |
If=120mA |
|
Uniformity for LCM |
- |
- |
60 |
- |
％ |
If=120mA |
|
Life Time |
- |
- |
50000 |
- |
Hr |
If=120mA |
|
Backlight Color |
White |
|||||
