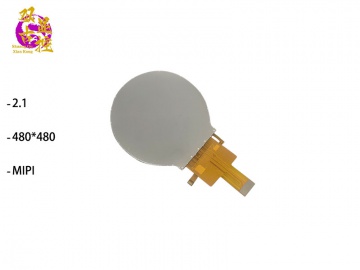

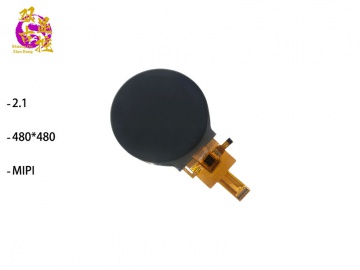

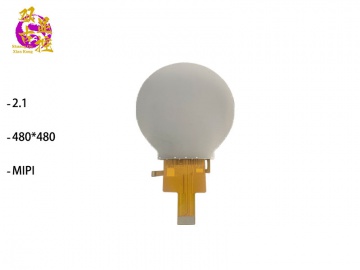

1. General Information
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
2.1’’TFT |
-- |
|
Dot arrangement |
480(RGB)×480 |
dots |
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
IPS / Transmission / Normally Black |
- |
|
Eyes Viewing Direction |
80/80/80/80 |
-- |
|
Driver IC |
ST7701S |
-- |
|
Module size |
60.62(W)×58.00(H)×4.11(T)(Exclude FPC) |
mm |
|
Active area |
53.28(W)×53.28(H) |
mm |
|
Interface |
MIPI |
-- |
|
Operating temperature |
-20 ~ +70 |
°C |
|
Storage temperature |
-30 ~ +80 |
°C |
|
Back Light |
White LED*4 |
-- |
|
Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
|
Supply Voltage |
Vf |
11.2 |
12 |
13.2 |
V |
If=20mA |
|
Supply Current |
If |
- |
20 |
- |
mA |
定电流 |
|
Luminous Intensity for LCM |
- |
- |
250 |
- |
cd/m2 |
If=20mA |
|
Uniformity for LCM |
- |
80 |
- |
- |
％ |
If=20mA |
|
Life Time |
- |
20000 |
- |
- |
Hr |
If=20mA |
|
Backlight Color |
White |
|||||

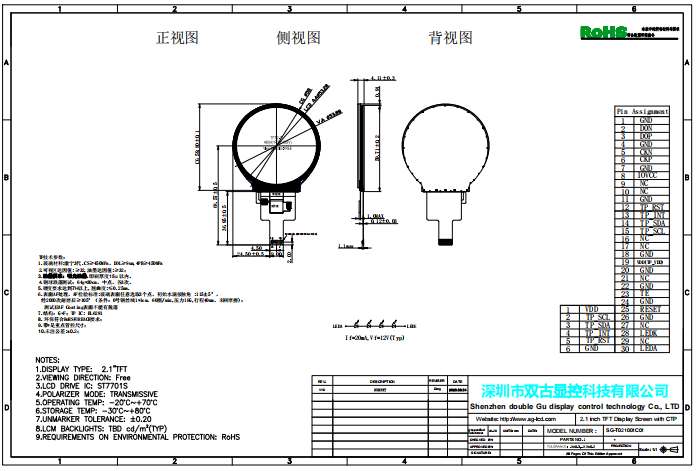

3. External Dimensions
