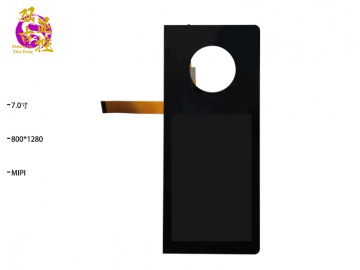

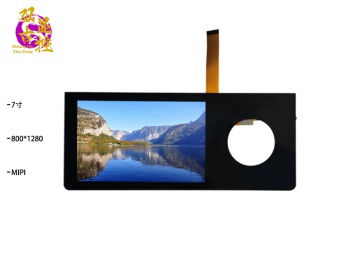

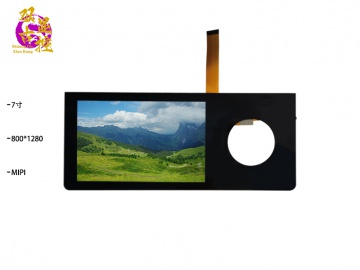

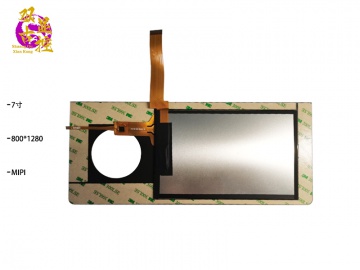

1. Technical parameters
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
7.0” TFT |
-- |
|
Dot arrangement |
800(RGB)×1280 |
dots |
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
IPS/ Transmission / Normally Black |
- |
|
Eyes Viewing Direction |
85/85/85/85 |
-- |
|
Driver IC |
ILI9881C |
-- |
|

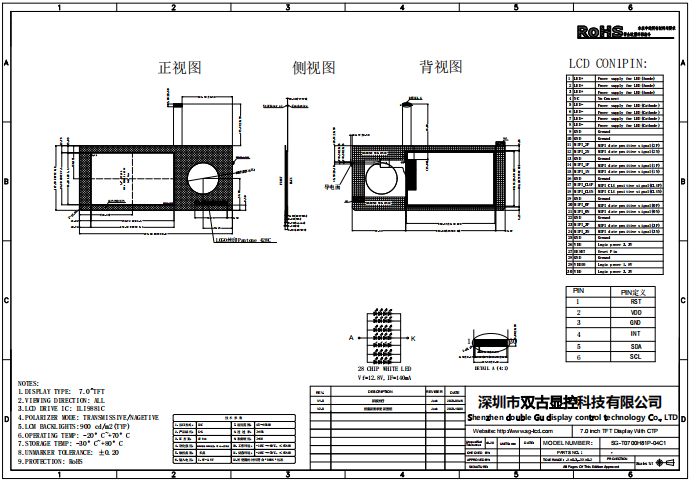

Module size |
278.00(W)×117.50(H)×4.63(T)(Exclude FPC) |
mm |
|
Active area |
94.20(W)×150.72(H) |
mm |
|
Interface |
MIPI 4 |
-- |
|
Operating temperature |
-20 ~ +70 |
°C |
|
Storage temperature |
-30 ~ +80 |
°C |
|
Back Light |
White LED 4*7 |
-- |
1.2 CTP General Information
|
CTP type |
7.0’’ |
-- |
|
Outline Dimension |
278.00(W)×117.50(H)X2.00(T) |
mm |
|
Touch area |
94.8X151.32 |
mm |
|
Max Number of Fingers |
5 point |
-- |
|
Driver IC |
GT911 |
-- |
|
surface hardness |
6H |
-- |
|
Operating temperature |
-10 ~ +60 |
℃ |
|
Storage temperature |
-20 ~ +70 |
℃ |
2. LED Backlight Characteristics
|
Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
|
Supply Voltage |
Vf |
- |
12.8 |
- |
V |
If=140mA |
|
Supply Current |
If |
- |
140 |
- |
mA |
- |
|
Luminous Intensity for LCM |
- |
- |
900 |
- |
cd/m2 |
If=140mA |
|
Uniformity for LCM |
- |
- |
80 |
- |
％ |
If=140mA |
|
Life Time |
- |
- |
50000 |
- |
Hr |
If=140mA |
|
Backlight Color |
White |
|||||
