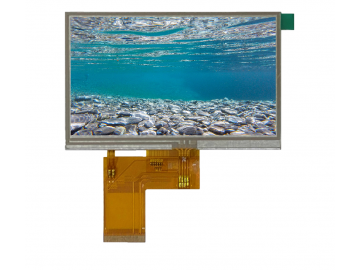

4.3"TFT IPS LCD / Customized Available
Product Tags :Color TFT-LCD, High Brightness LCD
Application :Industrial
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :4.3"
Resolution :480x RGB x272
Form Factor :Flat Rectangle
Active Area :95.04 X 53.86

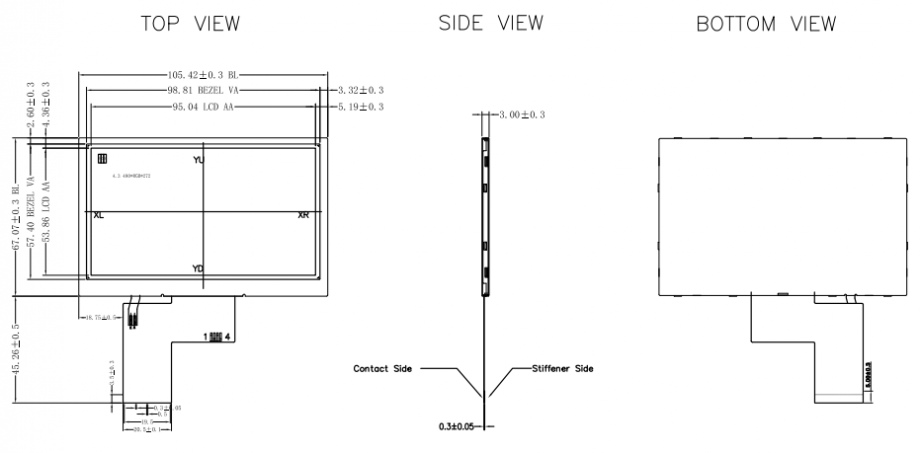

Outline Dimension :105.5 (W) ×67.2(H) mm
Max. Depth :3 mm
LC Family :TN Family
Polarizer :Transmissive
Brightness :500 (Typ.)
Viewing Direction : 12H
Viewing Angle : 60/50/60/60
Display Colors :262K
Backlight Type :WLED
Interface Type :TTL Interface
Interface Pins :40Pins
Operating Temp. :-20 ~70 °C
Storage Temp. :-30 ~ 80 °C
