4.3"TFT with Capacitive Touch
Product Tags :Color TFT-LCD, PCAP included
Application :Industrial
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :4.3"
Resolution :480xRGBx272
Form Factor :Flat Rectangle
Active Area :95.04 X 53.86

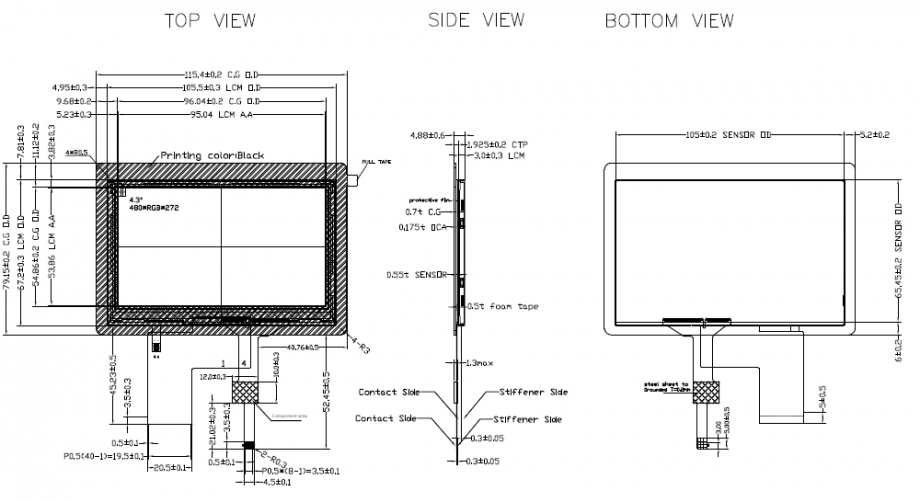

Outline Dimension :115.4 x (W) x79.15(H) mm
Max. Depth :4.88 mm
LC Family :TN Family
Polarizer :Transmissive
Brightness: 430Typ.)
Viewing Direction :Symmetry
View Angle:12H
Display Colors :16.7M
Backlight Type :WLED
Interface Type :TTL Interface
Interface Pins :40Pins
Operating Temp. :-20 ~70 °C
Storage Temp. :-30 ~ 80 °C
Despcription for CTP :
1.POWER SUPPLY:DC=3.3V,Interface:I2C
2.SURFACE HARDNESS:6H
3.TOP:-20°C~+70°C
4.TST:-30°C~+80°C
5.TRANSMITTANCE:≥86%
6.STRUCTURE:COVER+ITO GLASS
