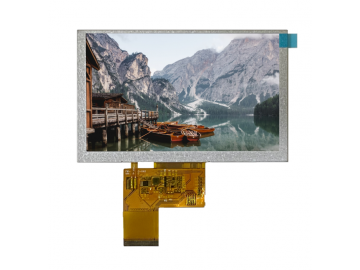

TFT LCD Panel
Panel Size :5"
Resolution :800x480
Aspect Ratio :5:3 (W:H)
Form Factor :Flat Rectangle
Active Area :108.0mm(W)*64.8mm(H)

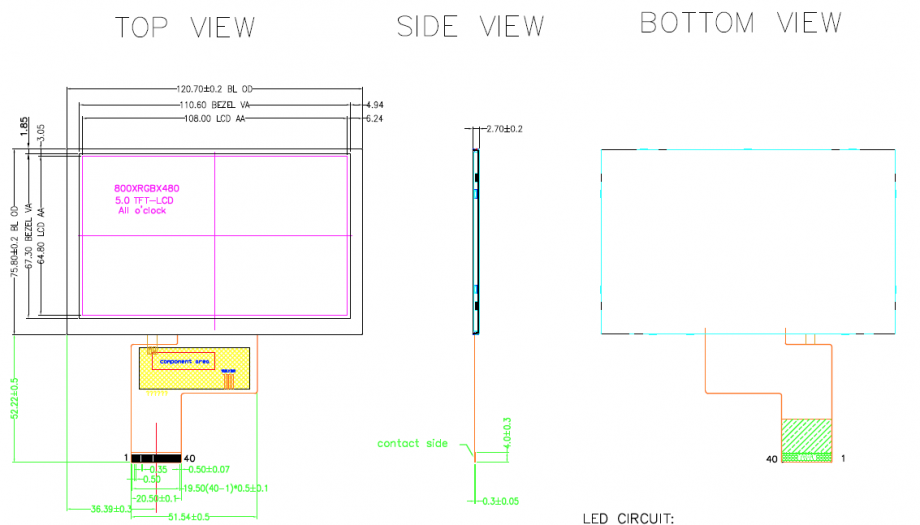

Outline Dimension :120.7(W)*75.8(H)
Max. Depth : 2.7mm
LC Family :IPS
Polarizer :Transmissive
Brightness :450 (Typ.)
Viewing Direction :IPS Free
Display Colors :16.7M
Color Arrangement: RGB
Backlight Type :WLED
Interface Type TTL/HDMI
Interface Pins :40 Pins
Assembly Type: COG
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
