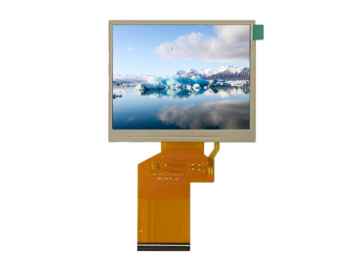

TFT LCD Panel
Product Tags :Color TFT-LCD, High Brightness LCD
Panel Size :3.5"
Resolution : 240 X 320
Form Factor :Flat Rectangle

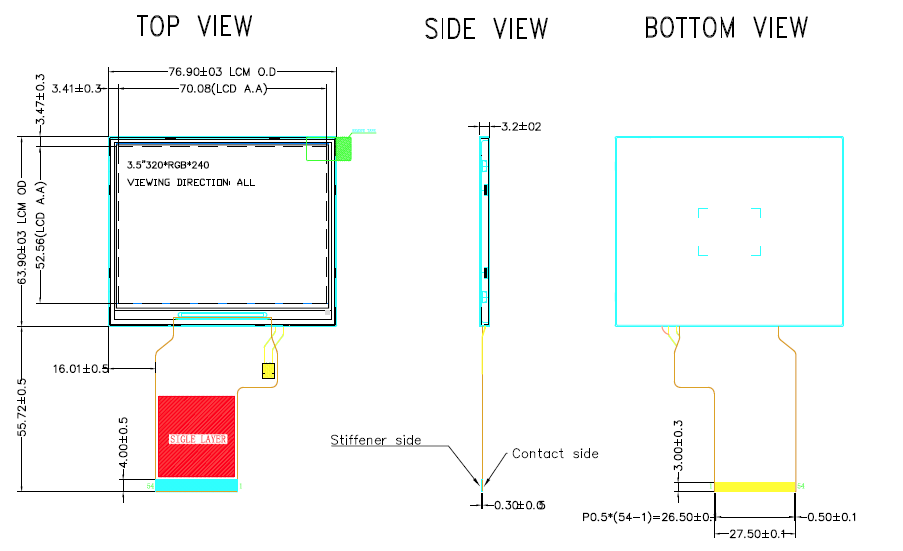

Active Area :70.08mm(W)*52.56mm(H)
Outline Dimension :76.9(W) x63.9 (H)
Max. Depth :3.2mm
Color Number: 16.7M
Polarizer :Transmissive
Brightness :1000 (Typ.)
Viewing Direction :All O'clock
Color Arrangement: RGB
Backlight Type :6 WLED
Interface Type: RGB Interface
Interface Pins :54 Pins
Assembly Type: COG
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
