1.LCM Technical Parameters
| NO. | Item | Specification | Remark |
| 1 | LCD size | 12.3 inch(Diagonal) | |
| 2 | Driver element | a-Si TFT active matrix | |
| 3 | Resolution | 1920× 3(RGB) ×720 | |
| 4 | Display mode | Normally black,Transmissive | |
| 5 | Pixel pitch | 0.1521 (H) ×0.1521 (V) | |
| 6 | Active area | 292.032(H) × 109.512(V) | |
| 7 | Module size | 302.33(W)×122.81(H) ×6.5(D) mm | Note1 |
| 8 | Surface treatment | Anti-Glare | |
| 9 | Interface | LVDS | |
| 10 | Panel power consumption | TBD（Typ.） | |
| 11 | Interface | Digital | |
| 12 | Weight | TBD(Typ.) |
2.LCM Optical Characteristics
| Item | Symbol | Condition | Min. | Typ. | Max. | Unit | Note | |
| Color Chromaticity(CIE1931) Under HKC BLU | Red | Rx | θx=0°,θy=0° | Typ. - 0.03 | -0.667 | Typ. +0.03 | - | -1 |
| Ry | -0.315 | |||||||
| Green | Gx | -0.283 | ||||||
| Gy | -0.679 | |||||||
| Blue | Bx | -0.154 | ||||||
| By | -0.068 | |||||||
| White | Wx | -0.306 | ||||||
| Wy | -0.336 | |||||||
| Color Gamut | CG | 70 | 75 | - | % | |||
| Contrast Ratio | CR | 50.00069444 | 62.50069444 | - | - | -2 | ||
| Transmittance | Tr | 3.3 | 3.8 | % | ||||
| Response Time | Tg=25℃ | - | - | 30 | ms | -3 | ||
| Tg=-20℃ | - | - | -150 | ms | ||||
| Tg=-30℃ | - | - | 350 | ms | ||||
| Viewing Angle | Horizontal | θx+ | CR≥10 0x=0°,0y=0° | 80 | 85 | - | Deg. | -4 |
| θx- | 80 | 85 | - | |||||
| Vertical | θy+ | 80 | 85 | - | ||||
| θy- | 80 - | 85 - | 20 | |||||
| flicker | -- | 0x=0°,0y=0 | dB | |||||
3.LED Backlight Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Supply voltage of white LED backlight | VL | 24 | 24.8 | 25.6 | V |
| Current for LED backlight | IL | - | 360 | - | mA |
| Power dissipation | Pd | - | 8928 | - | mW |
| Luminance | 700 | 800 | - | cd/m2 | |
| (on the module surface,BM-7) | |||||
| LED life time | - | 25000 | - | - | Hr |

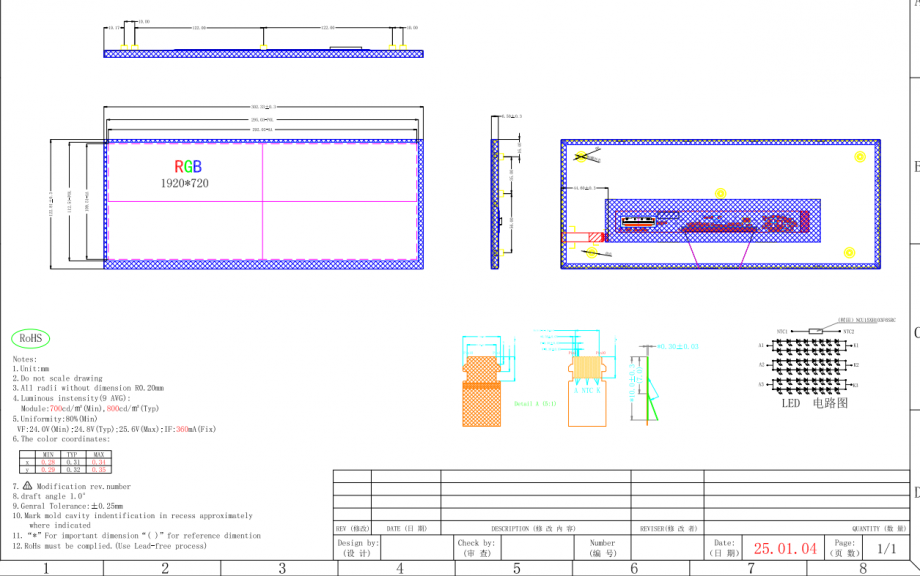

4.Outline Dimensions
