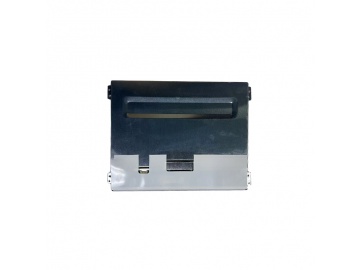

1.LCM Technical Parameters
| ITEM | STANDARD VALUES | UNITS |
| LCD type | 10.4 TFT | -- |
| Dot arrangement | 1024(RGB)×768 | dots |
| Color filter array | RGB vertical stripe | -- |
| Display mode | IPS / Transmission / Normally Black | - |
| Eyes Viewing Direction | ALL | -- |
| Driver IC | TBD | -- |
| Module size | 238.6(W)×175.8(H)×6.6(T) | mm |
| Active area | 210.43(W)×157.82(H) | mm |
| Interface | LVDS | -- |
| Operating temperature | -20 ~ +70 | ℃ |
| Storage temperature | -30 ~ +80 | ℃ |
| Back Light | TBD | -- |
2.LCM Optical Characteristics
|
Parameter |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
Remark |
|
|
Viewing angle range |
Hor. |
φ3 |
CR≥10 |
80 |
85 |
|
Deg. |
|
|
φ9 |
80 |
85 |
|
Deg. |
||||
|
Ver. |
φ12 |
80 |
85 |
|
Deg. |
|||
|
φ6 |
80 |
85 |
|
Deg. |
||||
|
Color gamut |
|
|
|
- |
60 |
|
% |
NTSC |
|
Luminance Contrast ratio |
CR |
|
800 |
1000 |
|
|
|
|
|
Response Time |
|
TRT |
Temp=25°C |
|
25 |
|
ms |
|
3.LED Backlight Characteristics
|
Item |
Symbol |
Min |
Typical |
Max |
Unit |
|
LED module Forward voltage |
VLED |
-- |
30 |
-- |
V |
|
LED module current |
ILED |
-- |
160 |
-- |
mA |
|
LCM Surface Luminance ★1 |
LS |
550 |
1000 |
-- |
mcd |
|
LCM Surface brightness uniform ★2 |
LD |
-- |
60 |
-- |
% |

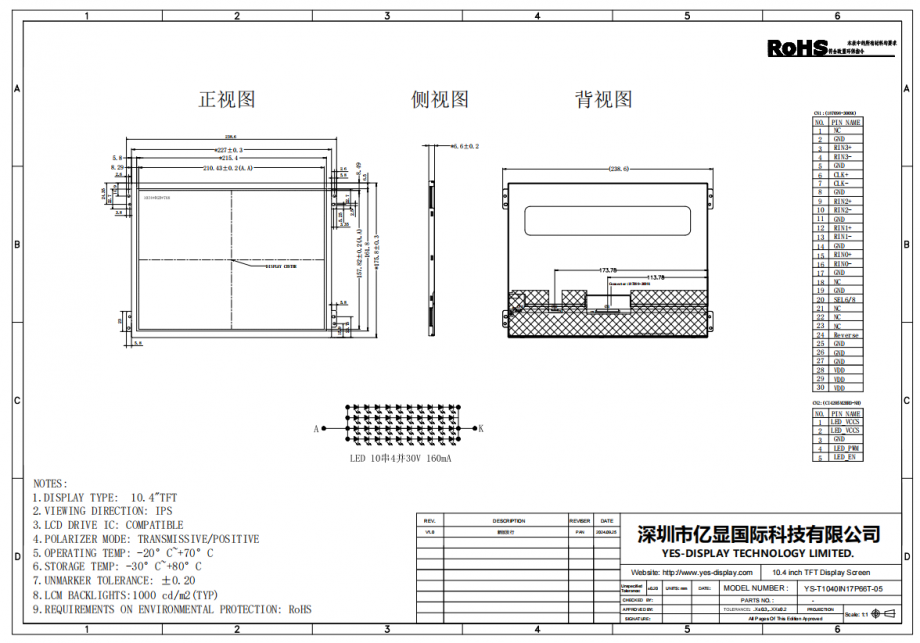

4.Outline Dimensions
