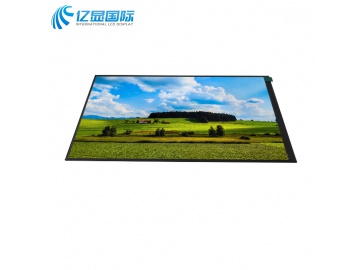

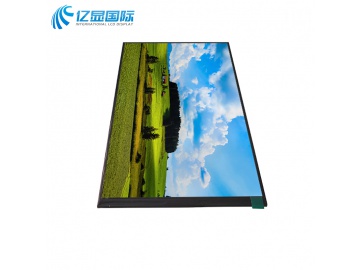

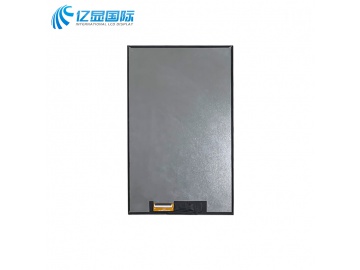

1.LCM Technical Parameters
|
Item |
Contents |
Unit |
|
LCD type |
TFT TRANSMISSIVE |
--- |
|
Viewing direction |
U/D/L/R 80/80/80/80
|
o’clock |
|
Module size (W×H×T) |
234.9 × 142.9 × 6.35 |
mm |
|
Active area(W×H) |
222.72 x 125.28 |
mm |
|
Number of dots(W×H) |
720(RGB) × 1280 |
dots |
|
Pixel Pitch(W×H)) |
0.058(H) ×RGB×0.174(V)
|
mm |
|
Display mode |
Normally black |
--- |
|
Colors |
16.7M |
--- |
|
Backlight Type |
42 white leds |
--- |
|
Interface Type |
MIPI |
--- |
2.LCM Optical Characteristics
|
Parameter |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
Remark |
|
|
Viewing angle range |
Hor. |
φ3 |
CR≥10 |
- |
80 |
|
Deg. |
|
|
φ9 |
- |
80 |
|
Deg. |
||||
|
Ver. |
φ12 |
- |
80 |
|
Deg. |
|||
|
φ6 |
- |
80 |
|
Deg. |
||||
|
Color gamut |
|
|
|
|
70 |
|
% |
NTSC |
|
Luminance Contrast ratio |
CR |
|
800 |
1000 |
|
|
|
|
|
Response Time |
|
TRT |
Temp=25°C |
|
30 |
|
ms |
|
3.LED Backlight Characteristics
|
Item |
Symbol |
Min |
Typical |
Max |
Unit |
|
LED module Forward voltage |
VLED |
17 |
19.8 |
20 |
V |
|
LED module current |
ILED |
-- |
300 |
-- |
mA |
|
LCM Surface Luminance ★1 |
LS |
820 |
940 |
-- |
mcd |
|
LCM Surface brightness uniform ★2 |
LD |
80 |
-- |
-- |
% |
4.Outline Dimensions
