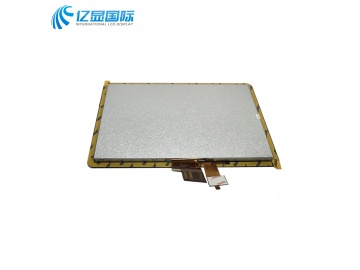

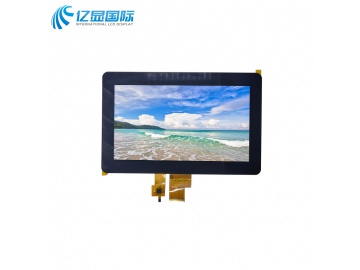

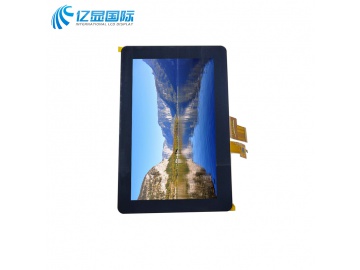

1.LCM Technical Parameters
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
8.0’’TFT |
-- |
|
Dot arrangement |
1024(RGB)×600 |
dots |
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
TN / Transmission / Normally White |
- |
|
Optimum viewing direction |
6 O’CLOCK |
-- |
|
Module size |
210(W)×134(H)×8.35(T)(Exclude FPC) |
mm |
|
Active area |
176.64(W)×99.36(H) |
mm |
|
Interface |
LVDS |
-- |
|
Operating temperature |
-20 ~ +70 |
°C |
|
Storage temperature |
-30 ~ +80 |
°C |
|
Back Light |
White LED*18 |
-- |
1.2.CTP General Information
|
ITEM |
STANDARD VALUES |
UNITS |
|
CTP type |
8.0’’ |
-- |
|
Outline Dimension |
210(W)×134(H)X1.45(T) |
mm |
|
Touch area |
177.64X100.36 |
mm |
|
Max Number of Fingers |
5 point |
-- |
|
Driver IC |
GT911 |
-- |
|
surface hardness |
6H |
-- |
|
Operating temperature |
-20 ~ +70 |
℃ |
|
Storage temperature |
-30 ~ +80 |
℃ |

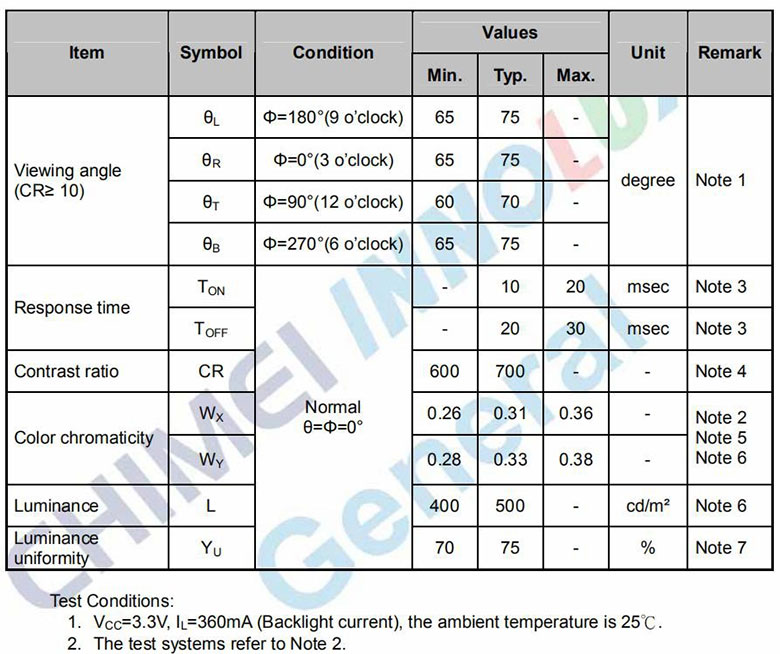

2.LCM Optical Characteristics
3.LED Backlight Characteristics
|
Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
|
Supply Voltage |
Vf |
- |
9.9 |
10.5 |
V |
If=120mA |
|
Supply Current |
If |
- |
120 |
- |
mA |
- |
|
Luminous Intensity for LCM |
- |
- |
400 |
- |
cd/m2 |
If=120mA |
|
Uniformity for LCM |
- |
80 |
- |
- |
％ |
If=120mA |
|
Life Time |
- |
20000 |
- |
- |
Hr |
If=120mA |
|
Backlight Color |
White |
|||||

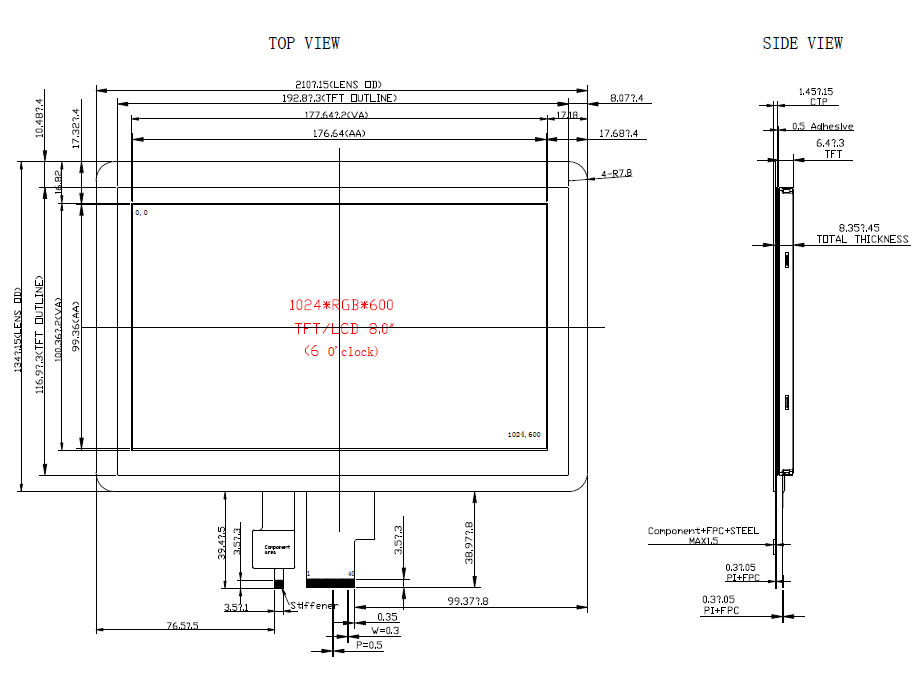

4.Outline Dimensions
