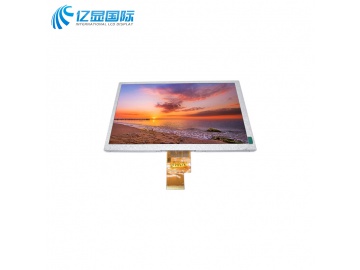

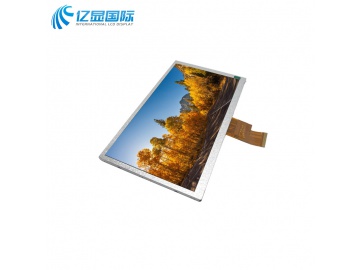

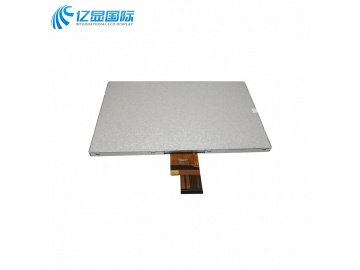

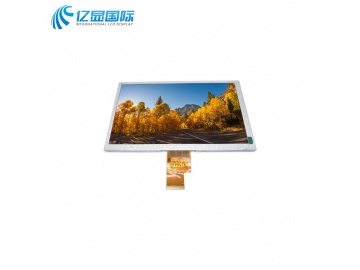

亿显国际 8.0寸 1024*600 TN 500亮度 40PIN LVDS 非触摸（工业、家电、玩具、医疗类用TFT液晶显示屏）

ITEM

STANDARD VALUES

UNITS

LCD type

8.0’’TFT

--

Dot arrangement

1024(RGB)×600

dots

Color filter array

RGB vertical stripe

--

Display mode

TN / Transmission / Normally White

-

Optimum viewing direction

6 O’CLOCK

--

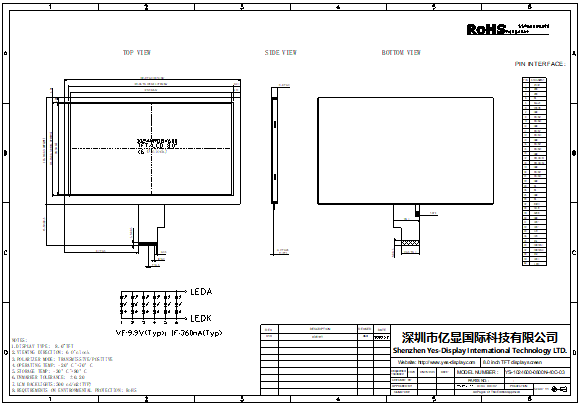

Module size

192.8(W)×116.9(H)×6.4(T)(Exclude FPC)

mm

Active area

176.64(W)×99.36(H)

mm

Pixel pitch

0.0575X3(H) X 0.1656(V)

mm

Interface

LVDS

--

Operating temperature

-20 ~ +70

°C

Storage temperature

-30 ~ +80

°C

Back Light

White LED*18

--

Item

Symbol

MIN

TYP

MAX

UNIT

Test Condition

Supply Voltage

Vf

-

9.9

10.5

V

If=360mA

Supply Current

If

-

360

-

mA

-

Luminous Intensity

for LCM

-

-

500

-

cd/m²

If=360mA

Uniformity for LCM

-

80

-

-

％

If=360mA

Life Time

-

20000

-

-

Hr

If=360mA

Backlight Color

White
