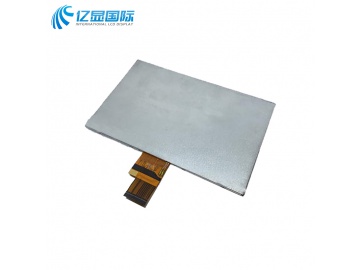

1.LCM Technical Parameters
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
7.0’’TFT |
-- |
|
Dot arrangement |
800(RGB)×480 |
dots |
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
TN / Transmission / Normally White |
- |
|
Optimum viewing direction |
6 O’clock |
-- |
|
Module size |
164.9(W)×100(H)×5.7(T)(Exclude FPC) |
mm |
|
Active area |
154.08(W)×85.92(H) |
mm |
|
Interface |
RGB |
-- |
|
Operating temperature |
-20 ~ +70 |
°C |
|
Storage temperature |
-30 ~ +80 |
°C |
|
Back Light |
White LED*21 |
-- |
2.LCM Optical Characteristics
|
Item |
Conditions |
Min. |
Typ. |
Max. |
Unit |
Note |
|
|
Viewing Angle |
Horizontal |
θL |
|
70 |
- |
degree |
(1),(2),(6) |
|
θR |
|
70 |
- |
||||
|
Vertical |
θT |
|
50 |
- |
|||
|
θB |
|
70 |
- |
||||
|
Contrast Ratio |
Center |
TBD |
250 |
- |
- |
(1),(3),(6) |
|
|
Response Time |
Rising |
- |
5 |
- |
ms |
(1),(4),(6) |
|
|
|
Falling |
- |
15 |
- |
ms |
||
|
CF Color Chromaticity (CIE1931) |
Red x |
Typ. |
TBD |
Typ. |
- |
(1), (6) |
|
|
Red y |
TBD |
- |
|||||
|
Green x |
TBD |
- |
|||||
|
Green y |
TBD |
- |
|||||
|
Blue x |
TBD |
- |
|||||
|
Blue y |
TBD |
- |
|||||
|
White x |
TBD |
- |
|||||
|
White y |
TBD |
- |
|||||
|
NTSC |
CIE1931 |
- |
55.3 |
- |
% |
(1),(6) |
|
3.LED Backlight Characteristics
|
Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
|
Supply Voltage |
Vf |
9.0 |
9.6 |
10.8 |
V |
If=40mA |
|
Supply Current |
If |
- |
140 |
- |
mA |
- |
|
Luminous Intensity for LCM |
- |
200 |
250 |
- |
cd/m2 |
If=40mA |
|
Uniformity for LCM |
|
|
80 |
|
4 |
If=40mA |
|
Life Time |
|
|
50000 |
|
Hr |
If=40mA |
|
Backlight Color |
White |
|||||

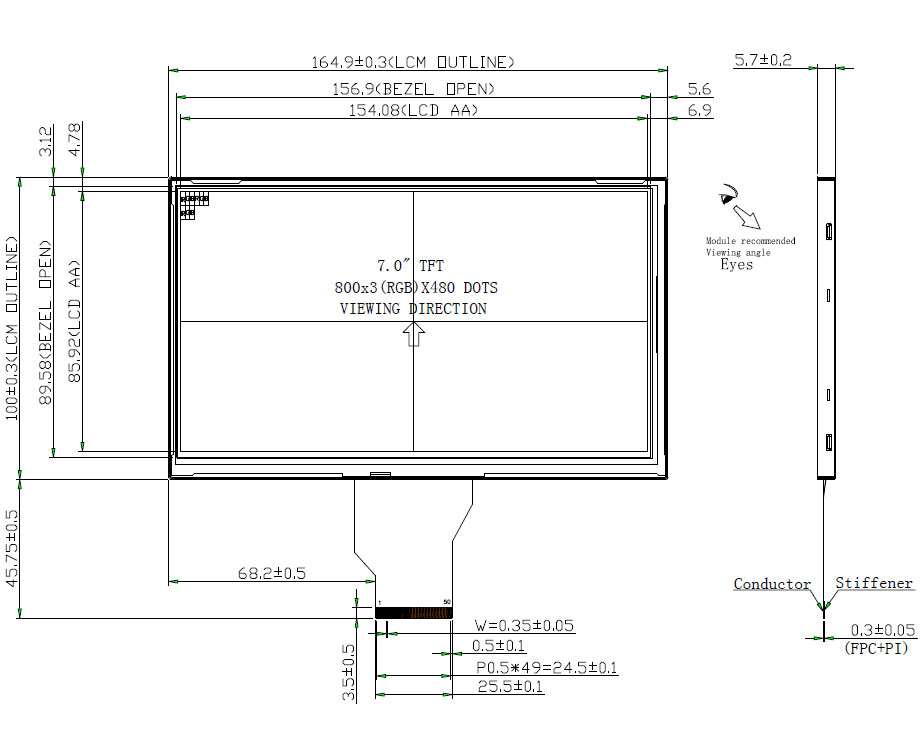

4.Outline Dimensions
