1.LCM Technical Parameters
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
5.0” TFT |
-- |
|
Dot arrangement |
720(RGB)×1280 |
dots |
|
Pixel Size |
0.02875（H）×0.08625（V） |
|
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
IPS/ Transmission / Normally Black |
- |
|
Eyes Viewing Direction |
85/85/85/85 |
-- |
|
Driver IC |
ST7703 |
-- |
|
Module size |
66.4(W)×120.05(H)×2.05(T)(Exclude FPC) |
mm |
|
Active area |
62.1(W)×110.40(H) |
mm |
|
Interface |
MIPI 4 |
-- |
|
Operating temperature |
-20 ~ +70 |
°C |
|
Storage temperature |
-30 ~ +80 |
°C |
|
Back Light |
White LED*12 |
-- |
|
Surface Treatment |
Bright face |
|

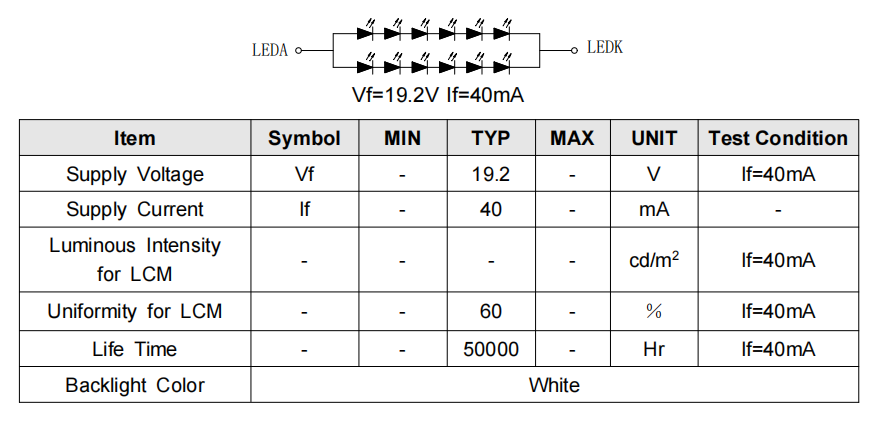

3.LED Backlight Characteristics

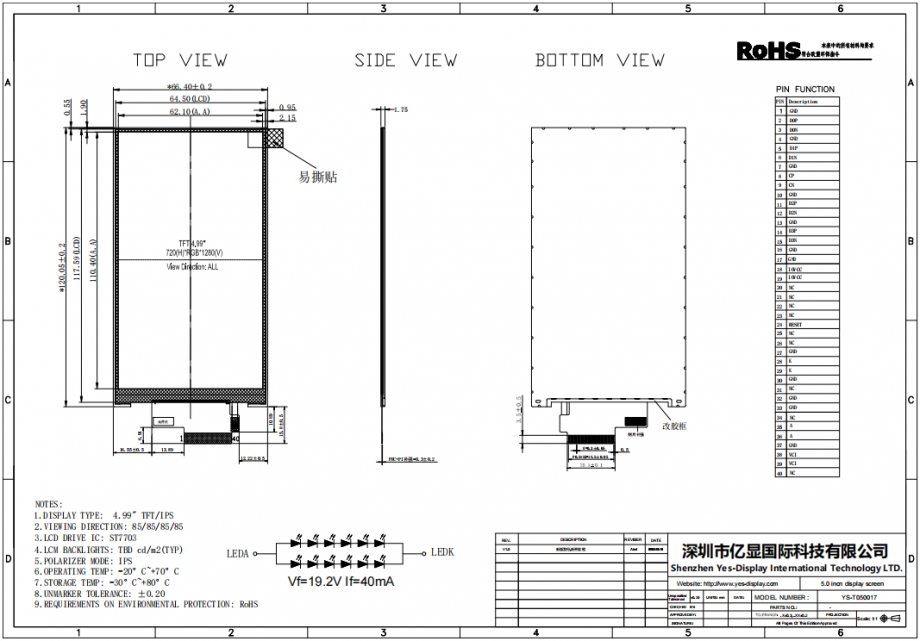

4.Outline Dimensions
