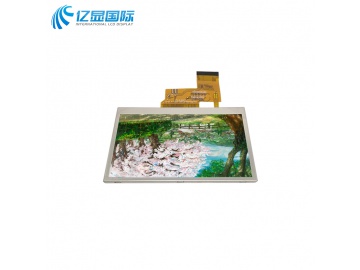

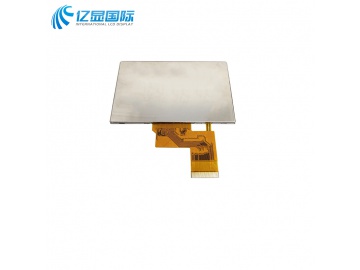

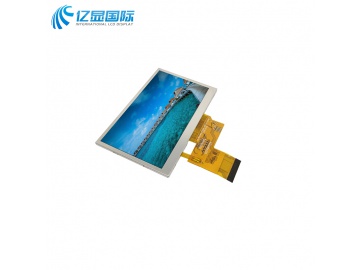

亿显国际 4.3寸800*480 IPS液晶显示屏 可配触摸 40PIN 24bit RGB（工业、家电、玩具、医疗类用TFT液晶显示屏）

ITEM

STANDARD VALUES

UNITS

LCD type

4.3’’TFT

--

Dot arrangement

800(RGB)×480

dots

Driver IC

ST7262E43

--

Color filter array

RGB vertical stripe

--

Display mode

IPS / Transmission / Normally Black

-

Viewing Direction

ALL

--

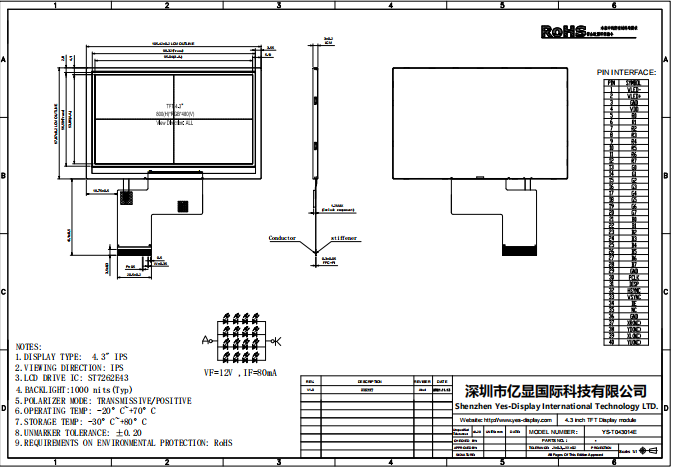

Module size

105.42(W)×67.07(H)×3.0(T)

mm

Active area

95.04(W)×53.86(H)

mm

Interface

24bit RGB

--

Operating temperature

-20 ~ +70

°C

Storage temperature

-30 ~ +80

°C

Back Light

White LED*16

--

Brightness

1000Cd/m2

--

Weight

TBD

--

Item

Symbol

MIN

TYP

MAX

UNIT

Test Condition

Supply Voltage

Vf

-

12.0

12.8

V

If=80mA

Supply Current

If

-

20

-

mA

-

Luminous Intensity

for LCM

-

900

1000

-

cd/m²

If=80mA

Uniformity for LCM

-

-

80

-

％

If=80mA

Life Time

-

-

50000

-

Hr

If=80mA

Backlight Color

White
