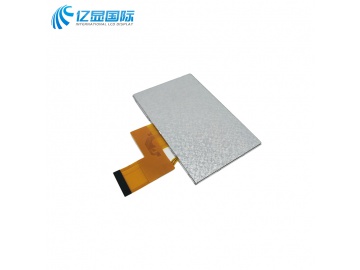

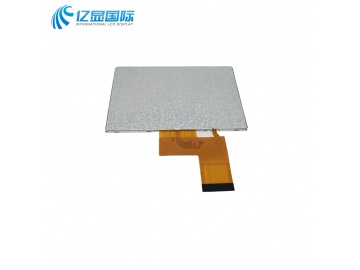

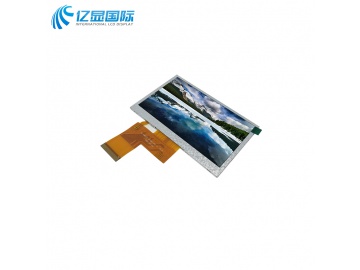

亿显国际 4.3寸480*272, 液晶显示屏, 可配触摸 40PIN, 24bit RGB, NV3047D（工业、家电、玩具、医疗类用TFT液晶显示屏）

ITEM

STANDARD VALUES

UNITS

LCD type

4.3’’TFT

--

Dot arrangement

480(RGB)×272

dots

Driver IC

NV3047D

--

Color filter array

RGB vertical stripe

--

Display mode

TN / Transmission / Normally White

-

Viewing Direction

12 O’clock

--

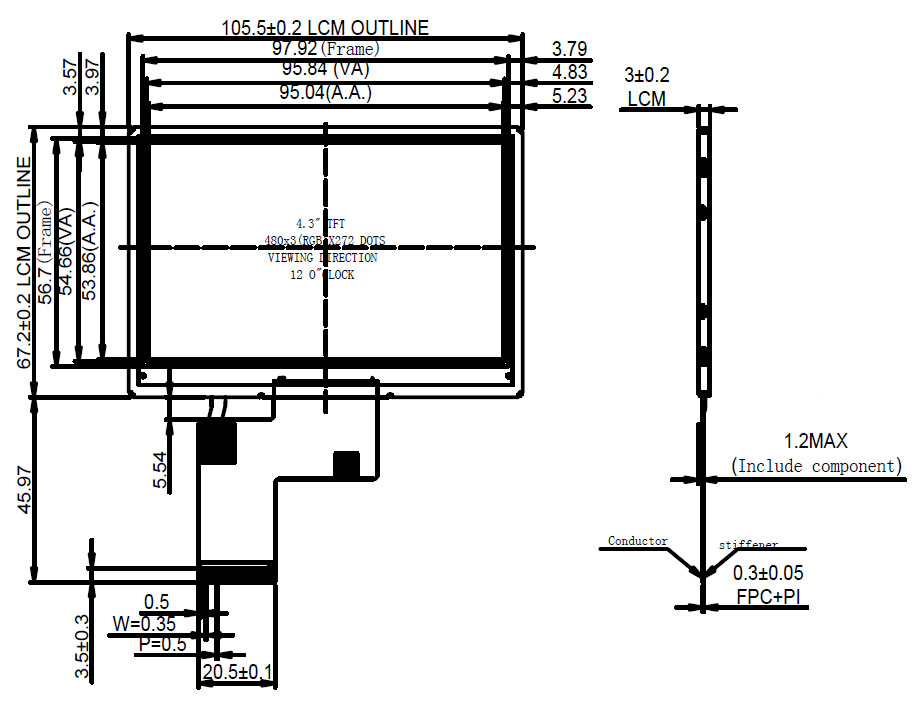

Module size

105.5(W)×67.2(H)×2.9(T)

mm

Active area

95.04(W)×53.86(H)

mm

Interface

24bit RGB

--

Operating temperature

-20 ~ +70

°C

Storage temperature

-30 ~ +80

°C

Back Light

White LED*7

--

Brightness

250Cd/m2

--

Weight

TBD

--

Item

Conditions

Min.

Typ.

Max.

Unit

Note

Viewing Angle
(CR>10)

Horizontal

θL

70

-

degree

(1),(2),(6)

θR

70

-

Vertical

θT

50

-

θB

70

-

Contrast Ratio

Center

TBD

250

-

-

(1),(3),(6)

Response Time

Rising

-

5

-

ms

(1),(4),(6)

Falling

-

15

-

ms

CF Color Chromaticity (CIE1931)

Red x

Typ.
-0.05

TBD

Typ.
+0.05

-

(1), (6)

Red y

TBD

-

Green x

TBD

-

Green y

TBD

-

Blue x

TBD

-

Blue y

TBD

-

White x

TBD

-

White y

TBD

-

NTSC

CIE1931

-

55.3

-

%

(1),(6)

Item

Symbol

MIN

TYP

MAX

UNIT

Test Condition

Supply Voltage

Vf

21.0

22.4

23.1

V

If=20mA

Supply Current

If

-

20

-

mA

-

Luminous Intensity for LCM

-

190

250

-

cd/m2

If=20mA

Uniformity for LCM

-

-

80

-

％

If=20mA

Life Time

5000

Hr

If=20mA

Backlight Color

White
