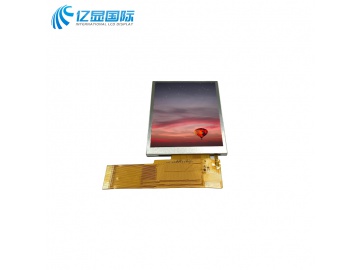

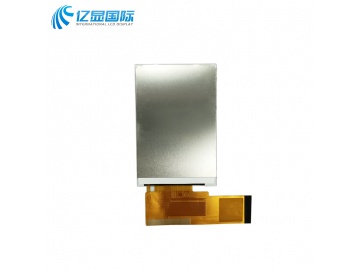

1.Technical parameters
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
3.5TFT |
-- |
|
Dot arrangement |
320(RGB)×480 |
dots |
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
TN / Transmission / Normally White |
- |
|
Eyes Viewing Direction |
12:00 |
-- |
|
Driver IC |
HX8357D |
-- |
|
Module size |
54.90(W)×83.20(H)×2.3(T)(Exclude FPC) |
mm |
|
Active area |
48.96(W)×73.44(H) |
mm |
|
Interface |
MCU_16BIT |
-- |
|
Operating temperature |
-20 ~ +70 |
°C |
|
Storage temperature |
-30 ~ +80 |
°C |
|
Back Light |
White LED*6 |
-- |

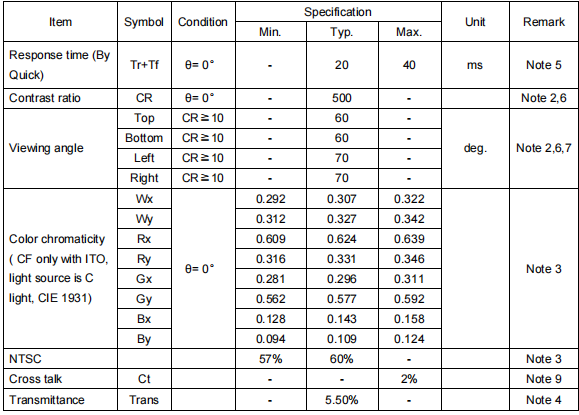

2.LCD Optical Characteristics
|
Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
|
Supply Voltage |
Vf |
- |
21.7 |
- |
V |
If=20mA |
|
Supply Current |
If |
- |
20 |
- |
mA |
If=20mA |
|
Luminous Intensity for LCM |
- |
300 |
350 |
- |
cd/m2 |
If=20mA |
|
Uniformity for LCM |
- |
- |
60 |
- |
％ |
If=20mA |
|
Life Time |
- |
- |
50000 |
- |
Hr |
If=20mA |
|
Backlight Color |
White |
|||||
4.Outline Dimensions
