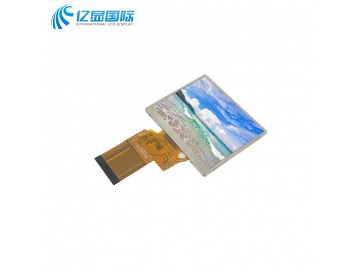

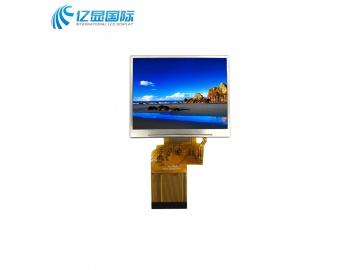

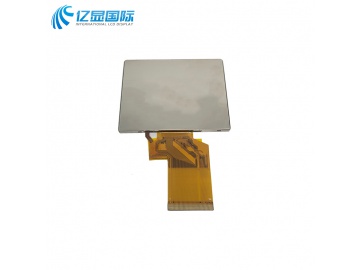

1.Technical parameters
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
3.5TFT |
-- |
|
Dot arrangement |
320(RGB)×240 |
dots |
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
IPS/ Transmission/ NormallyBlack |
- |
|
Eyes Viewing Direction |
80/80/80/80 |
-- |
|
Driver IC |
ST7272 |
-- |
|
Module size |
76.84(W)×63.84(H)×3.25(T)(Exclude FPC) |
mm |
|
Active area |
70.08(W)×52.56(H) |
mm |
|
Interface |
SPI+RGB |
-- |
|
Operating temperature |
-20~ +70 |
°C |
|
Storage temperature |
-30~ +80 |
°C |
|
Back Light |
White LED*6 |
-- |

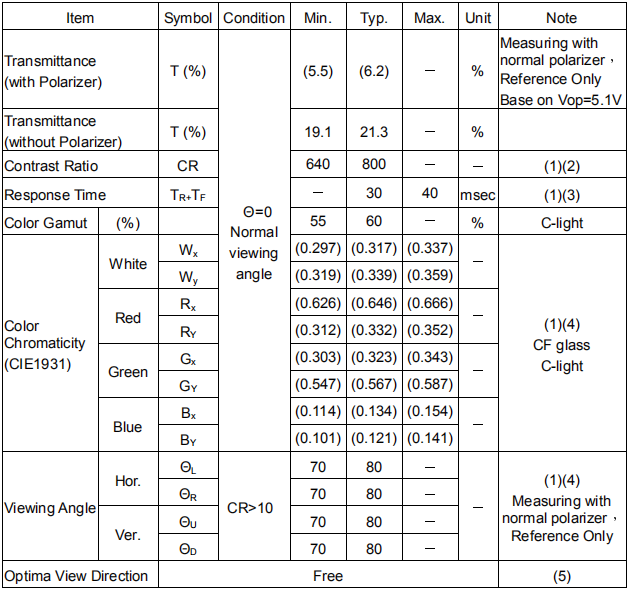

2.LCD Optical Characteristics
3. LEDBacklight Characteristics
|
Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
TestCondition |
|
Supply Voltage |
Vf |
- |
18.6 |
- |
V |
If=20mA |
|
Supply Current |
If |
- |
20 |
- |
mA |
- |
|
Luminous Intensity for LCM |
- |
- |
300 |
- |
cd/m2 |
If=20mA |
|
Uniformity for LCM |
- |
- |
60 |
- |
％ |
If=20mA |
|
Life Time |
- |
- |
50000 |
- |
Hr |
If=20mA |
|
Backlight Color |
White |
|||||

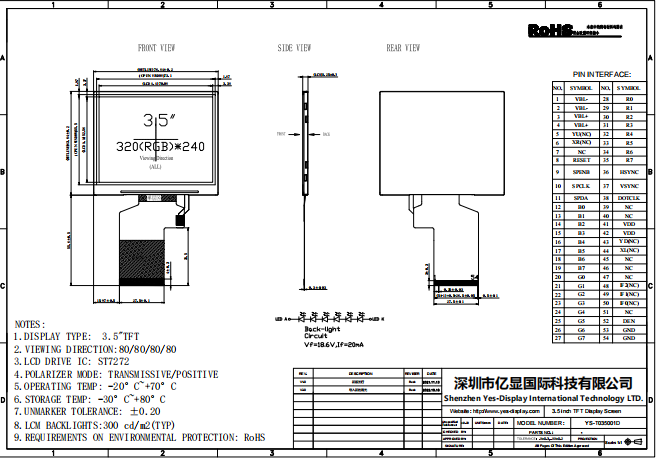

4.OutlineDimension
