亿显国际 3.2寸 240*320 300亮度40PIN MCU, ILI9341V 不带触摸 工业、家电、玩具、医疗类用TFT液晶显示屏

ITEM

STANDARD VALUES

UNITS

LCD type

3.2TFT

--

Dot arrangement

240(RGB)×320

dots

Color filter array

RGB vertical stripe

--

Display mode

TN / Transmission / Normally White

-

Eyes Viewing Direction

12 O’clock

--

Driver IC

ILI9341V

--

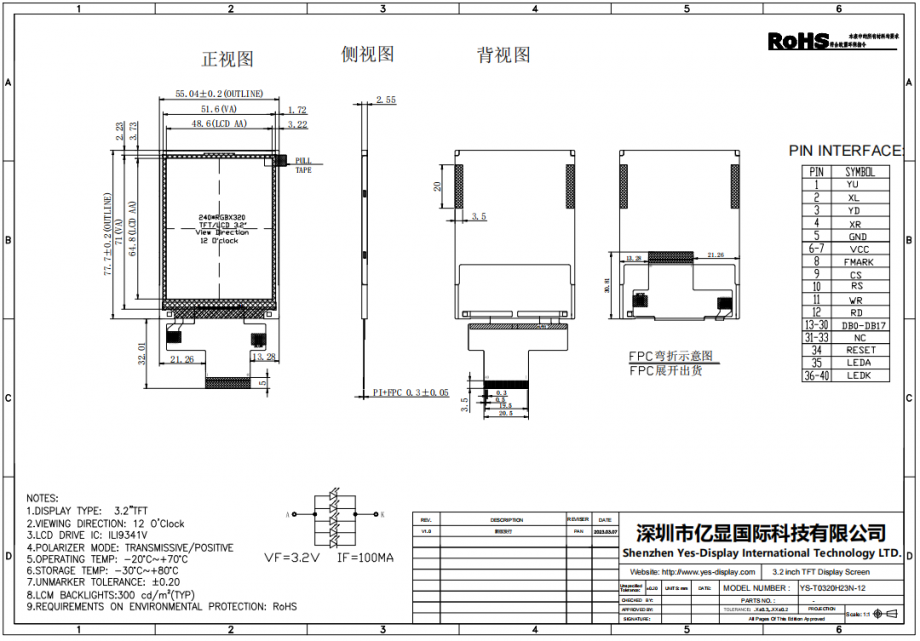

Module size

50.04(W)×77.70(H)×2.55(T)(Exclude FPC)

mm

Active area

48.6(W)×64.80(H)

mm

Interface

MCU_8BIT

--

Operating temperature

-20 ~ +70

°C

Storage temperature

-30 ~ +80

°C

Back Light

White LED*5

--

Item

Symbol

MIN

TYP

MAX

UNIT

Test Condition

Supply Voltage

Vf

2.8

3.2

3.6

V

If=100mA

Supply Current

If

-

100

-

mA

-

Luminous Intensity

for LCM

-

-

300

-

cd/m²

If=100mA

Uniformity for LCM

-

-

60

-

％

If=100mA

Life Time

-

-

50000

-

Hr

If=100mA

Backlight Color

White
