1.LCM Technical Parameters
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
1.54’’TFT |
-- |
|
Dot arrangement |
240(RGB)×240 |
dots |
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
IPS / Transmission / Normally Black |
- |
|
Eyes Viewing Direction |
80/80/80/80 |
-- |
|
Driver IC |
ST7789V |
-- |
|
Module size |
31.52(W)×33.72(H)×1.94(T)(Exclude FPC) |
mm |
|
Active area |
27.72(W)×27.72(H) |
mm |
|
Interface |
SPI4 |
-- |
|
Operating temperature |
-20 ~ +70 |
°C |
|
Storage temperature |
-30 ~ +80 |
°C |
|
Back Light |
White LED*3 |
-- |

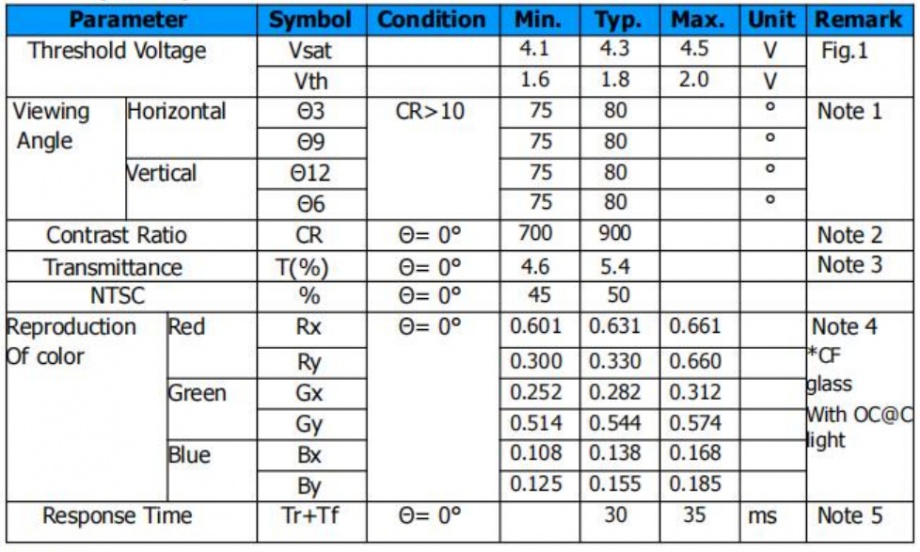

2.LCM Optical Characteristics

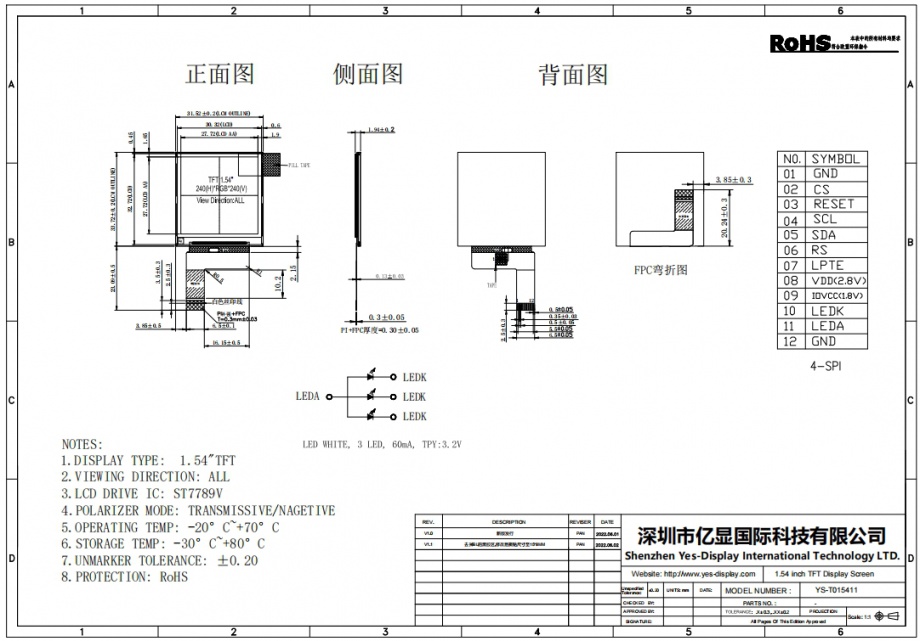

3. 结构尺寸(Outline Dimensions):
