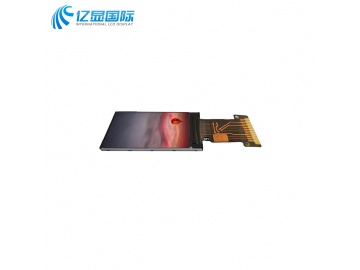

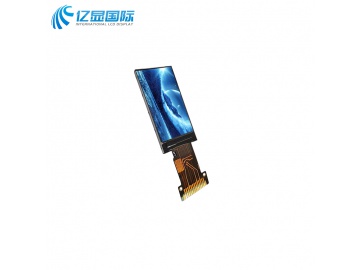

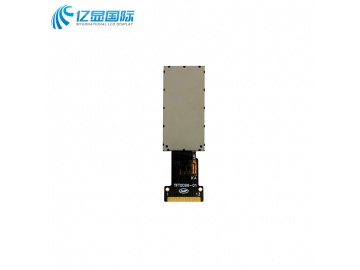

1. Technical parameters
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
0.96TFT |
-- |
|
Dot arrangement |
80(RGB)×160 |
dots |
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
IPS / Transmission / Normally White |
- |
|
Eyes Viewing Direction |
80/80/80/80 |
-- |
|
Driver IC |
ST7735S |
-- |
|
Module size |
14.04(W)×27.95(H)×1.35(T)(Exclude FPC) |
mm |
|
Active area |
10.8(W)×21.7(H) |
mm |
|
Interface |
SPI4 |
-- |
|
Operating temperature |
-20 ~ +70 |
°C |
|
Storage temperature |
-30 ~ +80 |
°C |
|
Back Light |
White LED*1 |
-- |
2.LED Backlight Characteristics
|
Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
|
Supply Voltage |
Vf |
2.8 |
3 |
3.2 |
V |
If=40mA |
|
Supply Current |
If |
- |
20 |
- |
mA |
- |
|
Luminous Intensity for LCM |
- |
100 |
110 |
- |
cd/m2 |
If=40mA |
|
Uniformity for LCM |
- |
- |
60 |
- |
％ |
If=40mA |
|
Life Time |
- |
- |
50000 |
- |
Hr |
If=40mA |
|
Backlight Color |
White |
|||||

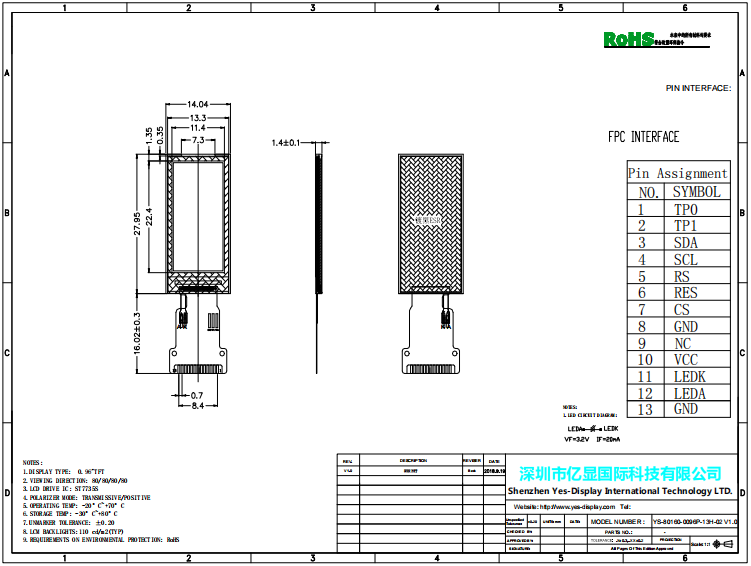

3. Outline Dimension
