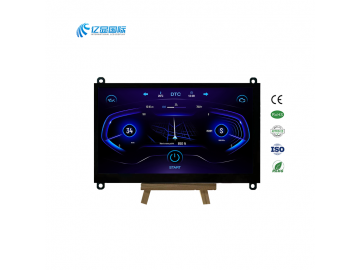

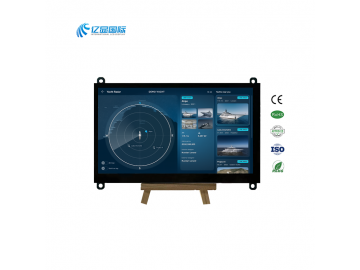

1.技术参数
参数 / Parameters
备注 / Remarks

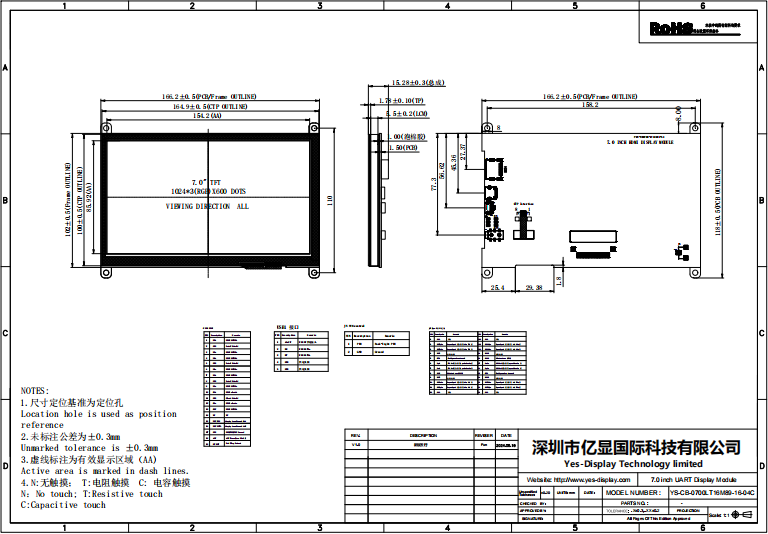

外形尺寸
Outline Dimension
166.20 x 118.00 x15.28
mm
AA区尺寸
Active Area
154.08(W)×85.92(H)
mm
分辨率
Resolution
1024×600
DOTS
OSD菜单
OSD MENU
✕
音频输出
Audio Output
√
接口
Interface
HDMI
视角
Viewing Angle
IPS
PWM控制
PWM Input
√
亮度
Brightness
500CD/m2
工作电压
Operating Voltage
5.0V
温度
Operating temperature
-20~70 ℃
Storage temperature
-30~80 ℃

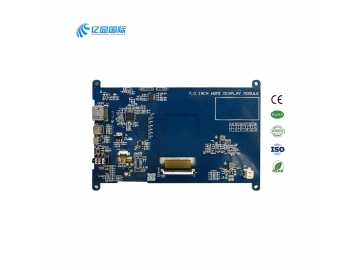

2.接口定义 / Interface Definition
(W*H*T)
(W*H)
4.1 PWM接口定义 / PWM Interface Definition
|
序号 / PIN |
定义/ Definition |
功能描述 / Functional Description |
|
1 |
PWM |
PWM Dimming Control |
|
2 |
GND |
供电负极 / Power ground |
2.2 HDMI接口定义 / DHMI Interface Definition
|
PIN NO. |
PIN NAME |
DESCRIPTION |
|
1 |
D2+ |
HDMI DATA2+ |
|
2 |
GND |
DATA2 Shield |
|
3 |
D2- |
HDMI DATA2- |
|
4 |
D1+ |
HDMI DATA1+ |
|
5 |
GND |
DATA1 Shield |
|
6 |
D1- |
HDMI DATA1- |
|
7 |
D0+ |
HDMI DATA0+ |
|
8 |
GND |
DATA2 Shield |
|
9 |
D0- |
HDMI DATA0- |
|
10 |
CK+ |
HDMI clock+ |
|
11 |
GND |
Clock Shield |
|
12 |
CK- |
HDMI clock- |
|
13 |
CEC |
Consumer Electronics Control |
|
14 |
NC |
NC |
|
15 |
DDC CLK |
Display Data Chanel CLK |
|
16 |
DDC DATA |
Display Data Chanel DATA |
|
17 |
GND |
DDC/CEC/HEC Ground |
|
18 |
+5V |
+5V Power(max 50MA) |
|
19 |
HP DET |
Hot Plug Detect |
2.3 USB接口定义 / USB Interface Definition
|
序号 / PIN |
定义/ Definition |
功能描述 / Functional Description |
|
1 |
+5V |
+5V input |
|
2 |
DM |
DATA- (USB) |
|
3 |
DP |
DATA+ (USB) |
|
4 |
GND |
供电负极 / Power ground |
|
5 |
GND |
供电负极 / Power ground |
