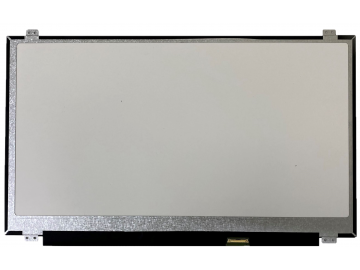

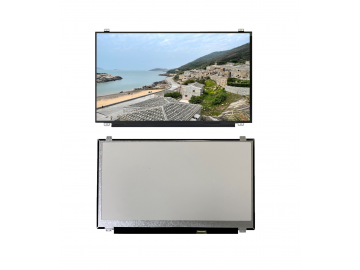

TFT-LCD Panel
Product Tags :Color TFT-LCD, LCD Display, Display solutions, LCD module
Application : NOTEBOOK, Multimedia Applications and Others AV System, POS system, etc.
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :15.6"
Resolution :1366xRGBx768
Aspect Ratio :16:9 (W:H)
Form Factor :Flat Rectangle
Active Area :344.23 (W) × 193.54 (H) mm (A.A)
Outline Dimension :359.5 (W) × 223.8(H) mm
Max. Depth :3.2 mm
LC Family :TN Family
Polarizer :Transmissive
Brightness :220 (Typ.)
Viewing Angle :45/45/40/20 (L/R/U/D)
Viewing Direction :6 o'clock
Display Colors :262K
Backlight Type :WLED
Interface Type :EDP Interface
Interface Pins :30 Pins
Operating Temp. :0 ~ 50 °C
Storage Temp. :-20 ~ 60 °C
(a) 1 lane eDP Interface with 1.62Gbps Link Rates
(b) Thin and light weight
(c) 6-bit color depth, display 262K colors
(d) Single LED Lighting Bar. (Down side/Horizontal Direction) and On board LED Driving circuit
(e) Green Product (RoHS & Halogen free product)
(f) Low driver voltage and low power consumption
(g) On board EDID chip
