TFT-LCD Panel
Product Tags :Color TFT-LCD, High Brightness LCD, IPS LCDApplication :Industrial, Outdoor High Brightness
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :15.6"
Resolution :1920×1080
Aspect Ratio :16:9 (W:H)
Form Factor :Flat Rectangle

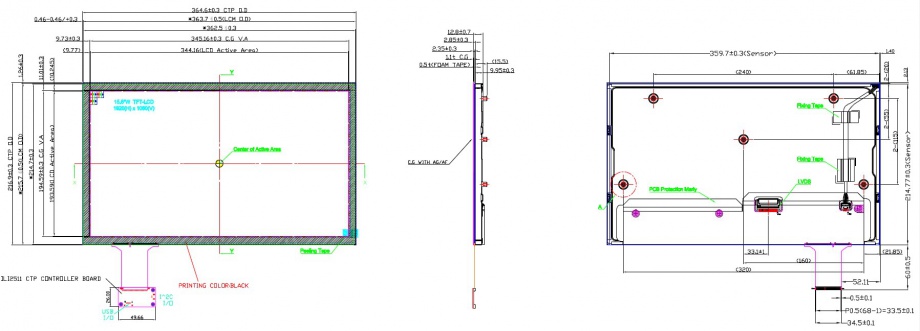

Active Area :344.16 (W) × 193.59 (H) mm (A.A)
Outline Dimension :3646 (W) × 216.9 (H) mm
Max. Depth :12.8 mm
LC Family :IPS Family
Polarizer :Transmissive
Brightness :720 (Typ.) with CTP touch
Viewing Angle :85/85/85/85 (L/R/U/D)
Viewing Direction :Symmetry
Backlight Type :WLED
Interface Type :LVDS
Interface Pins :50 Pins
Touch Panel :PCAP/ CTP touch
Operating Temp. :30 ~ 85 °C
Storage Temp. :-40 ~ 90 °C
CTP Note :
Operating Temp. :-30 ~ 85°C
Storage Temp. :-40 ~ 90 °C
Structure: Cover+ITO Glass
Interface: USB/ I2C
IC: ILI2511
