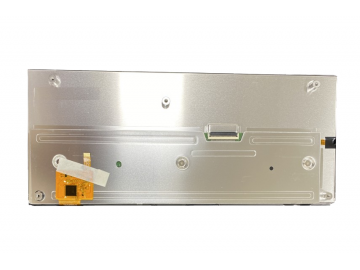

TFT-LCD Panel, Optional PCAP Touch
Product Tags: Color TFT-LCD, IPS LCD, High brightness LCD
Panel Type: a-Si TFT-LCD
Panel Composition: LCM
Panel Size: 12.3"
Resolution:1920X720
Form Factor: Flat Rectangle, landscape type
Module Dimension: 308.1(W)*130(H)*7.6(T)
Active Area:292.032(W)* 109.512(H)
Max. Depth: 7.6 mm
LC Family: IPS Family
Polarizer: Transmissive
Surface Treatment: Anti-glare
Contrast Ratio:1100:1
Brightness: 850 (Typ.)
Viewing Angle: 85/85/85/85
Viewing Direction: Symmetry
Backlight Type: WLED
Interface Type: LVDS
Interface Pins: 50 Pins
Operating Temp. :-30 ~ 85 °C
Storage Temp. :-40 ~90 °C
CTP Touch Note:
TP Structure: G+G
TP type: COF
Transmittance: ≧86%
Hardness: 6H
Operating Temp. :-10 ~ 60 °C
Storage Temp. :-20 ~70 °C
