12.1"TFT IPS LCD Panel / 800x RGB x600
Product Class :Graphic LCD Display
Product Tags :Color TFT-LCD, Wide Temperature LCD, IPS LCD
Application :Industrial
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :12.1"
Resolution :800×600
Aspect Ratio :4:3 (W:H)
Form Factor :Flat Rectangle
Active Area :246 (W) × 184.5 (H) mm (A.A)

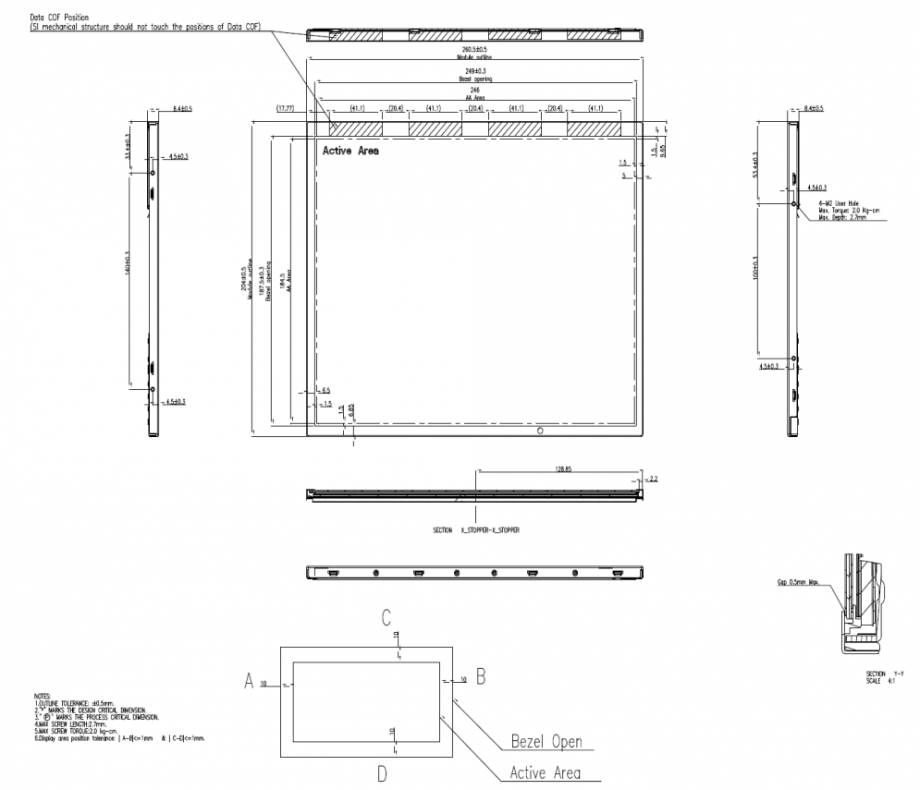

Outline Dimension :260.5 (W) × 204 (H) mm
Max. Depth :8.4 mm
LC Family :IPS Family
Polarizer :Transmissive
Brightness :450 (Typ.)
Contrast Ratio :1500:1 (Typ.)
Viewing Angle :89/89/89/89 (L/R/U/D)
Viewing Direction :Symmetry
Display Colors :262K/16.2M
Backlight Type :WLED
Interface Type :LVDS
Interface Pins :20 Pins
Touch Panel :Without
Operating Temp. :-30 ~ 80 °C
Storage Temp. :-30 ~ 85 °C
