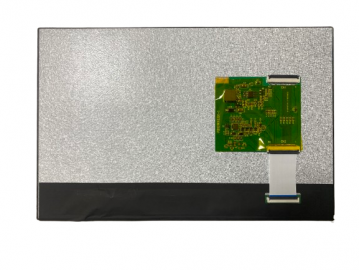

TFT LCD Panel
Product Tags :Color TFT-LCD, High Brightness LCD, Built-in LED driver
Application :Outdoor High Brightness
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :10.1"
Resolution :1280x800
Form Factor :Flat Rectangle

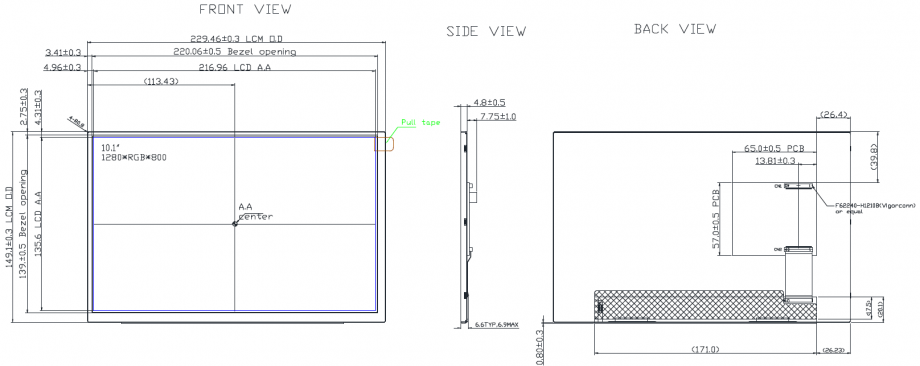

Active Area :216.96 (W) × 135.6 (H) mm (A.A)
Outline Dimension :229.46(W) × 149.1 (H) mm
Max. Depth :12.55 mm
LC Family :IPS Family
Polarizer :Transmissive
Brightness :1000(Typ.)
Viewing Direction :12 o'clock
Display Colors : 16.7M
Backlight Type :WLED
Interface Type : LVDS interface
Interface Pins :40 Pins
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
