TFT LCD Panel
Product Tags :Color TFT-LCD, High Brightness LCD, IPS LCD
Application :Outdoor High Brightness
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :10.1"
Resolution :1280×800
Aspect Ratio :16:10 (W:H)
Form Factor :Flat Rectangle
Active Area :216.96 (W) × 135.6 (H) mm (A.A)

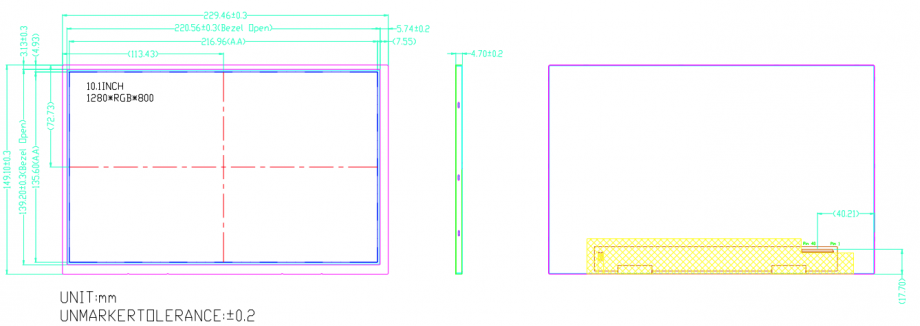

Outline Dimension :229.46 (W) × 149.1 (H) mm
Max. Depth :4.7 mm
LC Family :IPS Family
Polarizer :Transmissive
Brightness :1000 (Typ.)
Contrast Ratio :800:1 (Typ.)
Viewing Angle :85/85/85/85 (L/R/U/D)
Viewing Direction :Symmetry
Display Colors :16.7M
Backlight Type :WLED
Interface Type :LVDS
Interface Pins :40 Pins
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
