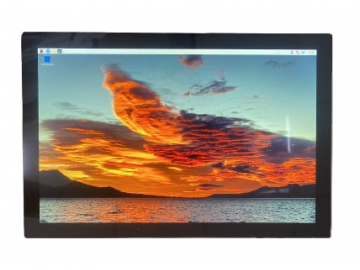

TFT LCD Panel
Product Tags :Color TFT-LCD, High Brightness LCD, Capacitive Touch LCD
Application :Outdoor High Brightness
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :10.1"
Resolution :1920x1200
Form Factor :Flat Rectangle
Active Area :216.91 (W) × 135.5 (H) mm (A.A)
Outline Dimension :259(W) × 157 (H) mm
Max. Depth :11.15 mm
LC Family :IPS Family
Polarizer :Transmissive
Brightness :900(Typ.) 700nits (with PCAP)
Viewing Direction :ALL
Display Colors : 16.7M
Backlight Type :WLED
Interface Type : LVDS interface
Interface Pins :40 Pins
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
CTP:
Interface Type: I2C
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
Structure: Cover + ITO Glass
