TFT-LCD Panel
Product Tags :Color TFT-LCD, High Brightness LCD, Capacitive Touch LCD
Application :Outdoor High Brightness
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :10.1"
Resolution :1024x600
Form Factor :Flat Rectangle

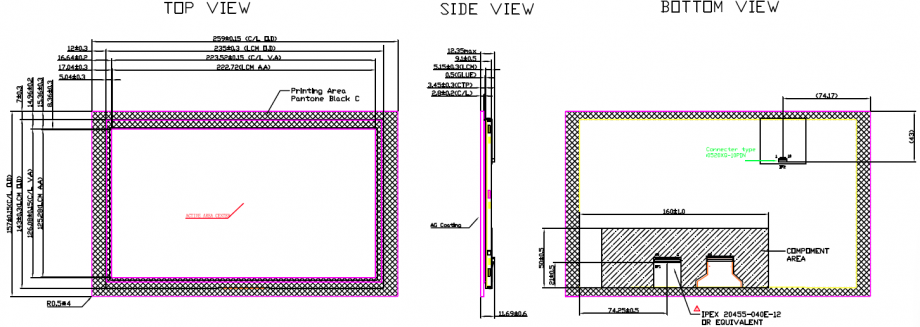

Active Area :222.72 (W) × 125.28 (H) mm (A.A)
Outline Dimension :259(W) × 157 (H) mm
Max. Depth :12.35 mm
LC Family :TN Family
Polarizer :Transmissive
Brightness :900(Typ.) 700nits (with PCAP)
Viewing Direction :6 O'Clock
Display Colors :262K
Backlight Type :WLED
Interface Type : LVDS interface
Interface Pins :40 Pins
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
CTP:
Interface Type: I2C
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
Structure: Cover with ITO Glass
