TFT-LCD Panel
Product Tags :Color TFT-LCD, High Brightness LCD
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :10.1"
Resolution :1024X600
Aspect Ratio :16:9 (W:H)
Form Factor :Flat Rectangle

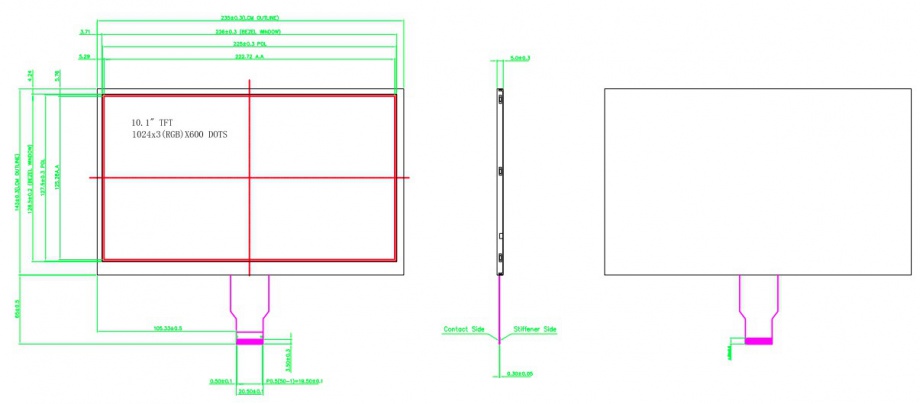

Active Area :222.72 (W) × 125.28 (H) mm (A.A)
Outline Dimension :235.0 (W) × 143.0(H) mm
Max. Depth :5 mm
LC Family :TN Family
Polarizer :Transmissive
Brightness :1000 (Typ.)
Viewing Angle :6 O'clock
Display Colors :262K
Backlight Type :WLED
Interface Type :TTL(RGB)/ LVDS
Interface Pins :50 Pins
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
