10.1" TFT LCD Panel / Customized Available
Product Tags :Color TFT LCD, Wide viewing LCD, Capacitive Touch LCD, IPS LCD, with HDMI drivnig board
Panel Type :IPS TFT-LCD
Panel Composition :LCM
Panel Size :10.1"
Resolution :1280×800
Aspect Ratio :16:10(W:H)
Form Factor :Flat Rectangle

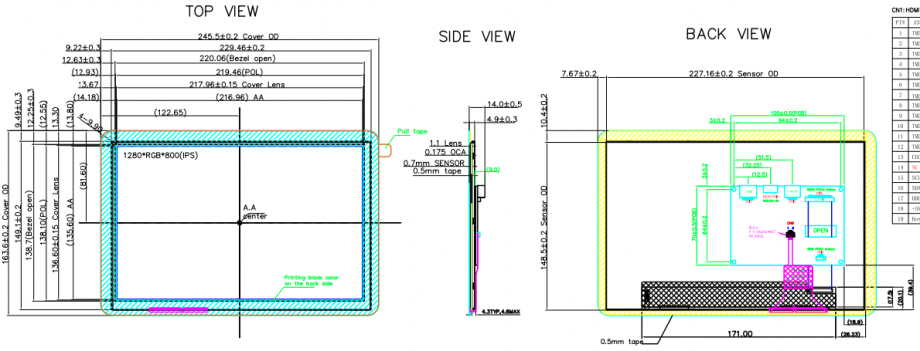

Active Area :216.96 (W) × 135.6 (H) mm (A.A)
Outline Dimension :245.5 (W) × 163.6 (H) mm
Max. Depth :14 mm
LC Family :IPS
Polarizer :Transmissive
Brightness :300 (Typ.)
Contrast Ratio :800:1 (Typ.)
Viewing Angle :85/85/85/85 (L/R/U/D)
Viewing Direction :Symmetry
Display Colors :16.7M
Backlight Type :WLED
Interface Type :LVDS/ HDMI
Interface Pins :40 Pins
Touch Panel :PCAP
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
CTP Note
Power Supply: DC2.8~3.3V
Interface: I2C
Structure: Cover+ITO Glass
IC:GT928
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
