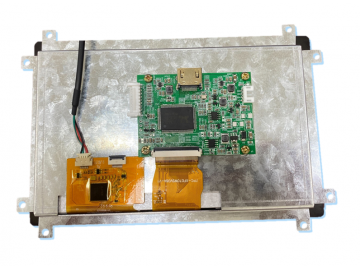

TFT LCD Panel:
Product Tags :Color TFT-LCD, High Brightness LCD, Capacitive Touch LCD
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :7"
Resolution :1024x600
Form Factor :Flat Rectangle
Active Area :154.08 (W) × 85.92 (H) mm (A.A)
Outline Dimension :190.27(W) × 125.8 (H) mm
Max. Depth :23.2 mm
LC Family :IPS Family
Polarizer :Transmissive
Brightness :800nits(Typ.) with PCAP
Viewing Direction :12 O'Clock
Display Colors : 16.7M
Backlight Type :WLED
Interface Type : HDMI interface
Interface Pins :50 Pins
Operating Temp. :-30 ~ 85 °C
Storage Temp. :-40 ~ 90 °C
CTP:
Interface Type: USB I/F
Cover Glass Level: IK8
Operating Temp. :-30 ~ 80 °C
Storage Temp. :-30 ~ 80 °C
Structure: Cover + ITO Glass
