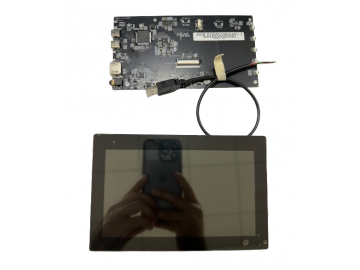

TFT LCD Panel / Customized Available / With Type C AD board
Product Tags: Color TFT-LCD, IPS LCD, Capacitive Touch LCD
Panel Size: 7"
Resolution: 1024x600
Form Factor: Flat Rectangle

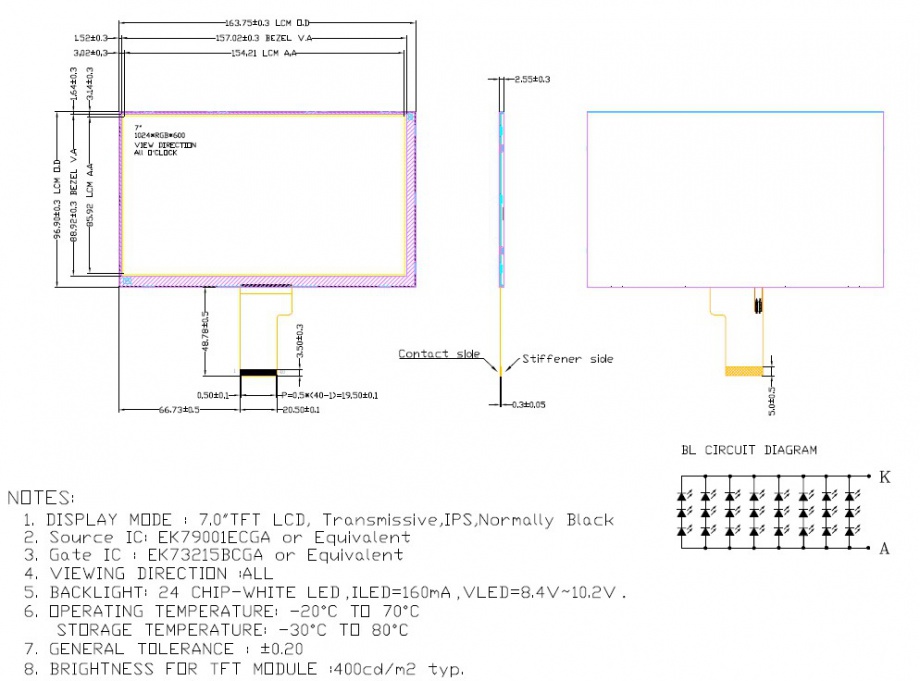

Active Area :154.21mm(W)*85.92mm(H)
Outline Dimension: 163.75(W)*96.9(H)
Max. Depth: 2.55 mm
LC Family: IPS
Polarizer: Transmissive
Brightness: 400 (Typ.)
Viewing Direction: FREE
Display Colors:16.7M
Color Arrangement: RGB
Backlight Type: WLED
Interface Type: LVDS I/F
Interface Pins: 40 Pins
Assembly Type: COG
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C

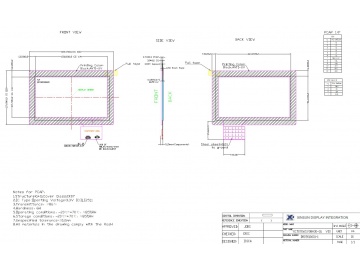

CTP Note:
Structure: G+G, Cover: IK07
Transmittance: ≧86%
IC: ILI2511, USB I/F or I2C I/F
Hardness: 6H
Operating temperature: -20~70℃
Storage temperature: -20~70℃
