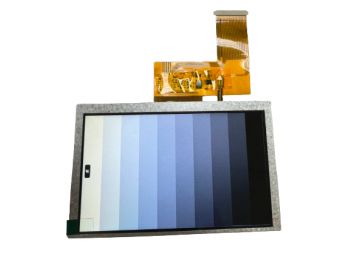

TFT-LCD PanelTFT-LCD Panel
Product Tags : Color TFT-LCD, TN LCD
Panel Size: 5"
Resolution: 800x480
Form Factor: Flat Rectangle

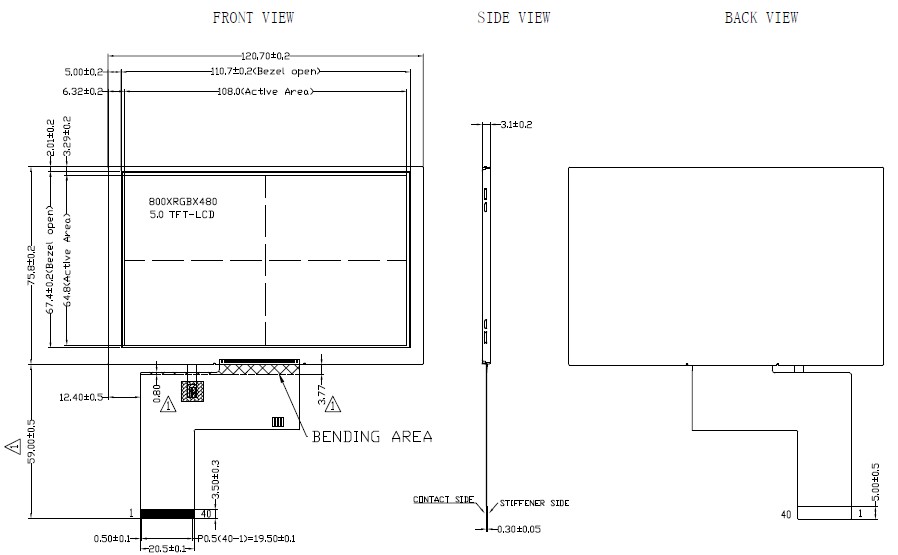

Active Area :108.0mm(W)*64.8mm(H)
Outline Dimension :120.7(W)*75.8(H)
Max. Depth :3.1 mm
LC Family: TN
Polarizer: Transmissive
Brightness: 500 (Typ.)
Display Colors: 65/262K
Color Arrangement: RGB
Backlight Type: WLED
Interface Type TTL/RGB
Interface Pins: 40 Pins
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
