5"TFT IPS LCD / Customized Available
Product Tags :Color TFT-LCD, High Brightness LCD
Product Tags :Color TFT-LCD, IPS LCD
Panel Size :5"
Resolution :480x854
Aspect Ratio :9:16 (W:H)
Form Factor :Flat Rectangle

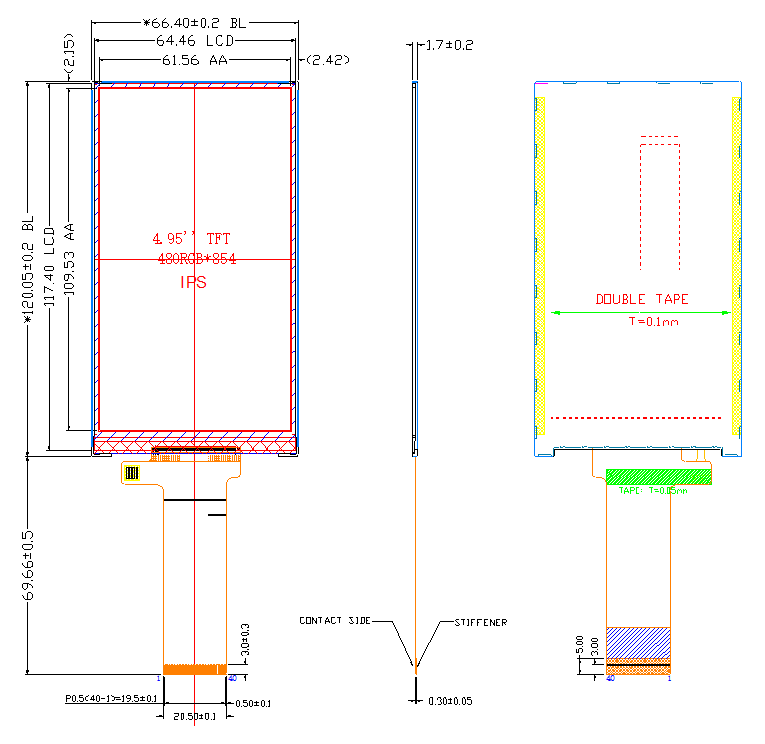

Active Area :61.56mm(W)*109.53mm(H)
Outline Dimension :66.4(W)*120.05(H)
Max. Depth :1.7 mm
LC Family :IPS
Polarizer :Transmissive
Brightness :320 (Typ.)
Viewing Direction :Free
Display Colors :16.7M
Color Arrangement:RGB
Backlight Type :WLED
Interface TypeMIPI
Interface Pins :40 Pins
Assembly Type: COG
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C Storage Temp. :-30 ~ 80 °C
