TFT LCD Panel
Product Tags :Color TFT-LCD, a-Si TFTPanel Size :3.2"
Resolution : 320 X 480
Form Factor :Flat Rectangle

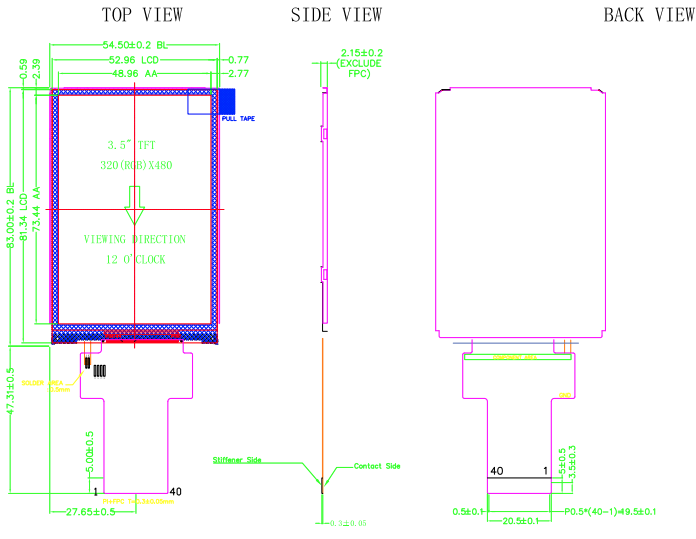

Active Area :48.96mm(W)*73.44mm(H)
Outline Dimension :54.46(W) x82.94(H)
Max. Depth :2.2mm
Color Number: 262K
Polarizer :Transmissive
Brightness :300 (Typ.)
Contrast Ratio : 450:1 (Typ.)
Viewing Angle :60/50/60/60 (U/D/L/R)
Viewing Direction :12 O'clock
Color Arrangement: RGB/MCU
Backlight Type :WLED
Interface Type: 8bits/16bits MCU I/F
Interface Pins :40 Pins
Assembly Type: COG
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
