TFT LCD Panel
Product Tags :Color TFT-LCD, a-Si TFTPanel Size :2.4"
Resolution : 240 X 320
Form Factor :Flat Rectangle
Active Area :36.72mm(W)*48.96mm(H)

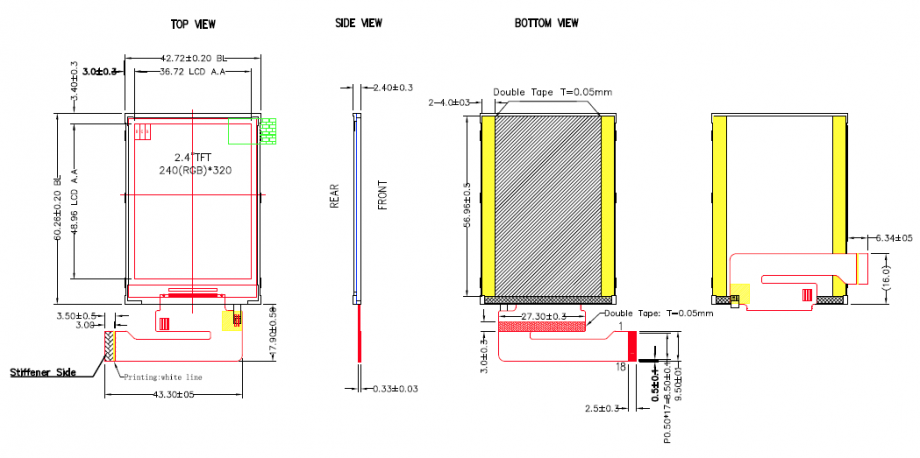

Outline Dimension :44.32(W) x60.26 (H)
Max. Depth :2.15 mm
Color Number: 262K
Polarizer :Transmissive
Brightness :500 (Typ.)
Contrast Ratio : 500:1 (Typ.)
Viewing Angle :70/60/70/70 (U/D/L/R)
Viewing Direction :6 O'clock
Color Arrangement:RGB
Backlight Type :WLED
Interface Type: MCU/RGB I/F
Interface Pins : 18 Pins
Assembly Type: COG
Operating Temp. :-10 ~ 60 °C
Storage Temp. :-20 ~ 70 °C
