TFT LCD Panel
Product Tags :Color TFT-LCD, a-Si TFTPanel Size :2.4"
Resolution : 240 X 320
Form Factor :Flat Rectangle
Panel Composition :LCM

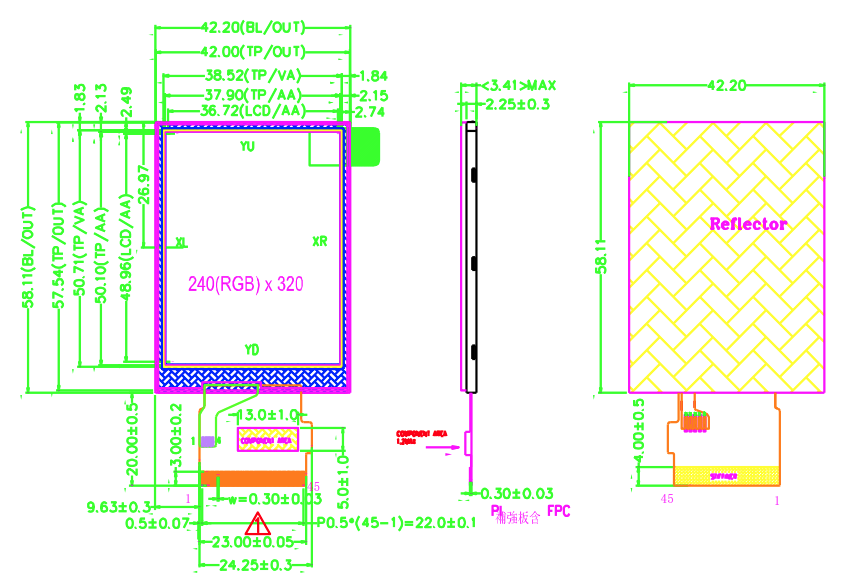

Active Area :37.9mm(W)*50.1mm(H)
Outline Dimension :42.2(W) x58.11(H)
Max. Depth :3.41 mm
Color Number: 262K
Polarizer :Transmissive
Brightness :300 (Typ.)
Contrast Ratio : 500:1 (Typ.)
Viewing Angle :45/60/60/60 (U/D/L/R)
Viewing Direction :6 O'clock
Color Arrangement:RGB
Backlight Type :WLED
Interface Type: CPU I/F
LC Family :TN
Interface Pins :45 Pins
Assembly Type: COG
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
• High image quality a-Si TFT LCD module.
• 65K/262K color number.
• 80-system 8 bit bus CPU I/F .
• High-speed RAM write function is available.
• Partial-screen display function is available.
• Sleep and Stand-by modes are available for power saving.
• Low power consumption.
