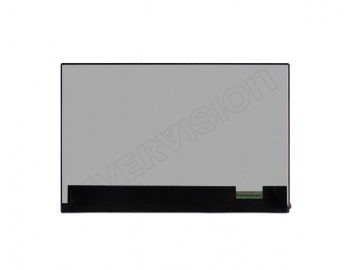

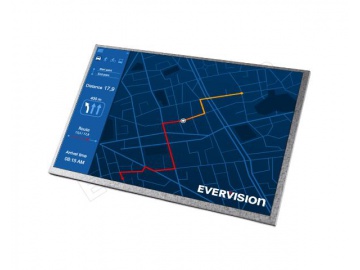

10.1寸 TFT 液晶显示屏 IPS 1920*1200 LVDS 45PIN 1000CD

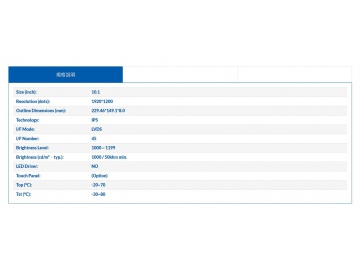

规格说明如下:

Size (inch)                            10.1
Resolution (dots):                 1920*1200
Outline Dimensions (mm):    229.46*149.1*8.0
Technology:                          IPS
I/F Mode:                              LVDS
I/F Number:                          45
Brightness Level:                1000~1199
Brightness (cd/m2 . typ.):    1000/ 50khrs min.
LED Driver:                         NO
Touch Panel:                      (Option)
Top(°C):                             -20~70
Tst (°C):                             -30~80
