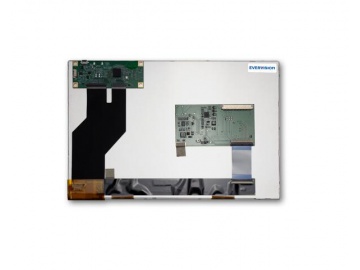

10.1寸 TFT 液晶显示屏 IPS 1280*800 LVDS 30PIN 1060CD

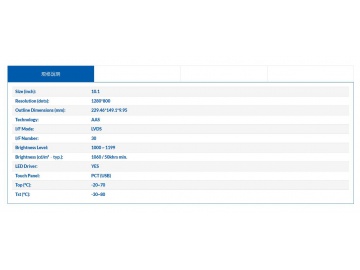

规格说明如下:

Size (inch):                            10.1
Resolution (dots):                 1280*800
Outline Dimensions (mm):    229.46*149.1*9.95
Technology:                          AAS
I/F Mode:                              LVDS
I/F Number:                          30
Brightness Level:                 1000~1199
Brightness (cd/m2 . typ.):    1060/ 50khrs min.
LED Driver:                          YES
Touch Panel:                        PCT(USB)
Top(°C):                               -20~70
Tst (°C):                               -30~80
