| Specification | ||
| Part No. | TST055HDHI-01C | |

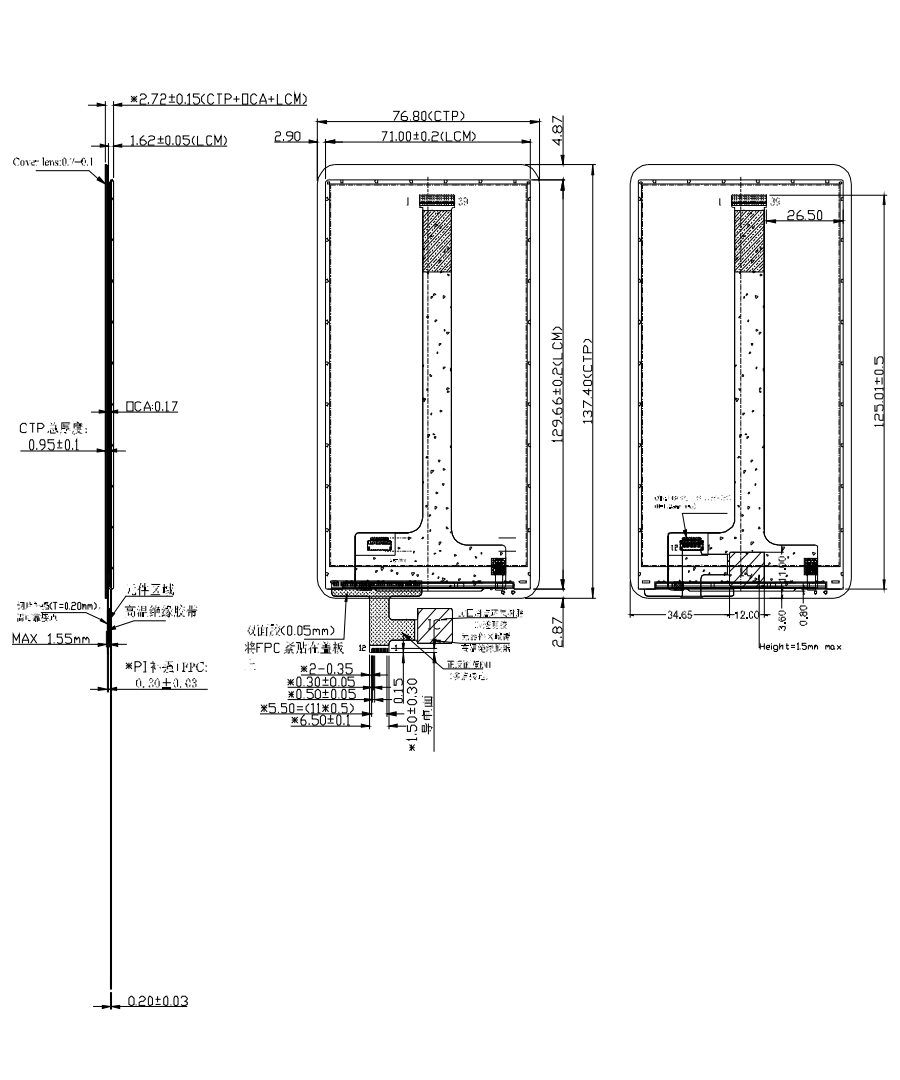

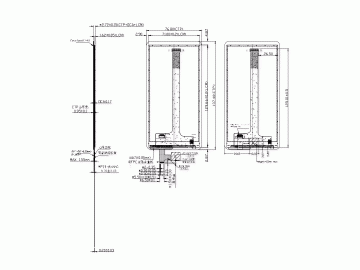

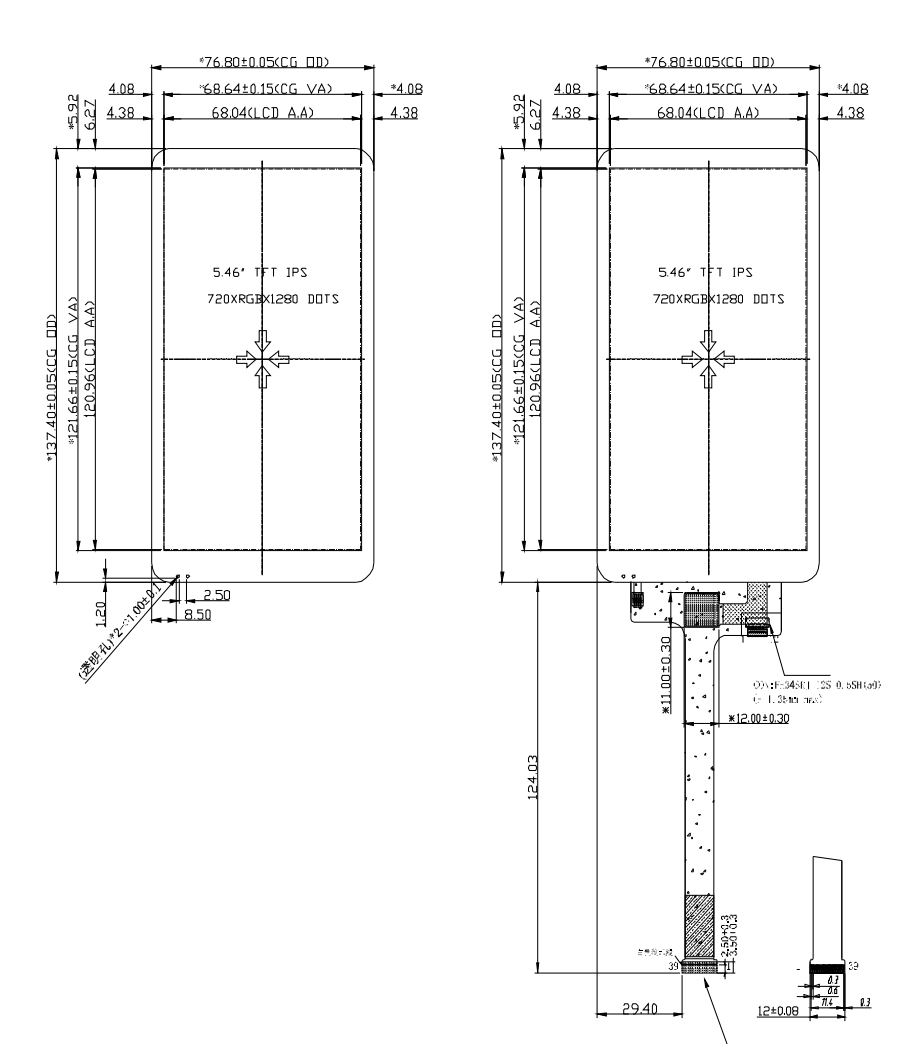

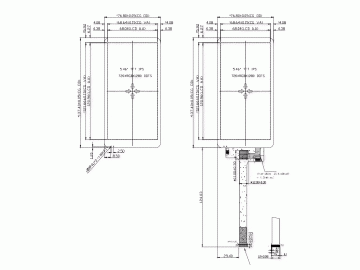

| Outline Dimension(mm) | 71*129.6*1.62 | |
| Active Area(mm) | 68.04*120.96 | |
| Resolution(dots) | 720*RGB*1280 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 720RGB(H)xRGBx1280(V) | |
| Touch panel | Capacitive touch | |
| Dot Pitch | 0.0642(W)x0.1790(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal white,IPS, 5.0 inch TFT | |
| Surface treatment | Antiglare | |
| View direction |
ALL |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface | Digital | |
| Module lifetime(Hours) | 50,000-100,000 | |
