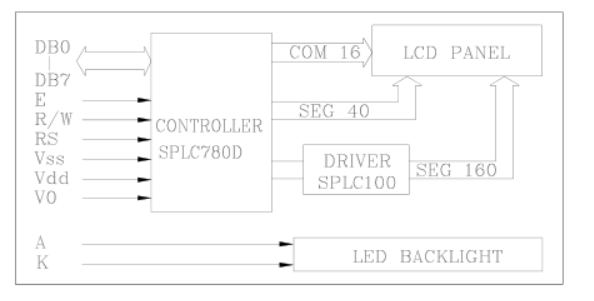

Interface with 4-bit or 8-bit MPU (directly connected M6800 serial MPU)
Display Specification
Display Character: 20 character X 4 line Character Font:5X7dots+cursor
Display color-Display background color : STN,Yellow/Green
Polarize mode: positive, Transflective
Viewing angle: 12:00
Display duty: 1/16 Driving bias: 1/5
Character Generator ROM (CGROM): 8320 bits (192 characterX5X7 dots) &(32
characterX5X10 dots)
Character Generator RAM (CGRAM): 64X8 bits (8 charactersX5X8 dots)
Display Data RAM (DDRAM) :80X8 bits (80 characters max)

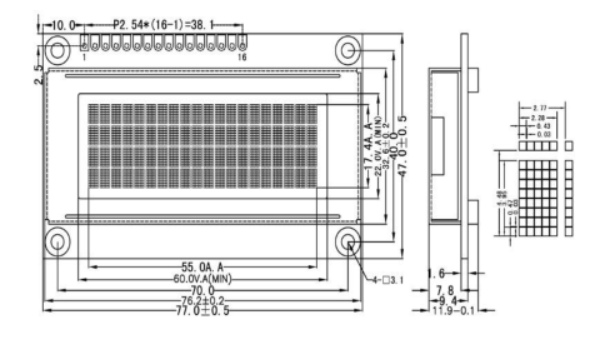

Mechanical characteristics (Unit: mm)
Extenal dimension:77.0X47.0X13.5
View area : 60.0X22.0 Character font: 5X7 dots + cursor
Character size: 2.28X3.95 Dots size:0.43X0.47
Character pitch: 2.77X4.48
Weight ：60g
POWER： +5V
