5.0V 硅蓝/灰/黄绿 20字符 x 4行 2004 LCD模块 4x20字符液晶显示屏

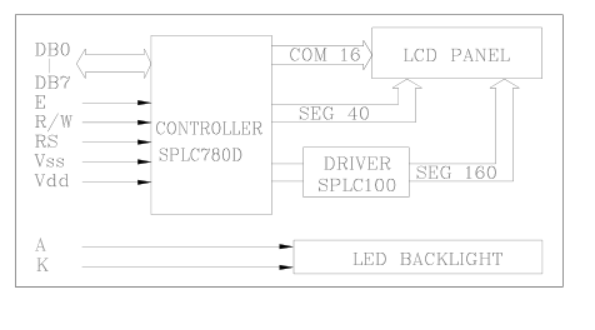

Interface with 4-bit or 8-bit MPU (directly connected M6800 serial MPU)
Display Specification
Display Character: 20 character X 4 line Character Font:5X7dots+cursor
Display color-Display background color : STN, White-Gray
Polarize mode: positive, Transflective
Viewing angle: 12:00
Display duty: 1/16 Driving bias: 1/5
Character Generator ROM (CGROM): 8320 bits (192 characterX5X7 dots) &(32
characterX5X10 dots)
Character Generator RAM (CGRAM): 64X8 bits (8 charactersX5X8 dots)
Display Data RAM (DDRAM) :80X8 bits (80 characters max)

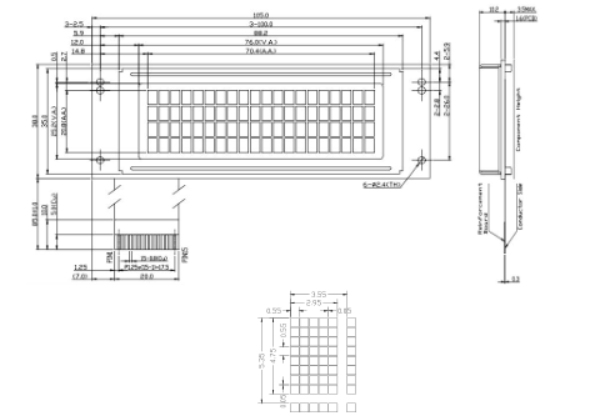

Mechanical characteristics (Unit: mm)
Extenal dimension:105.0X38.0X13.5
View area : 76.0X25.2 Character font: 5X7 dots + cursor
Character size: 2.95X4.75 Dots size:0.55X0.55
Character pitch: 3.55X5.35
Weight ：60g

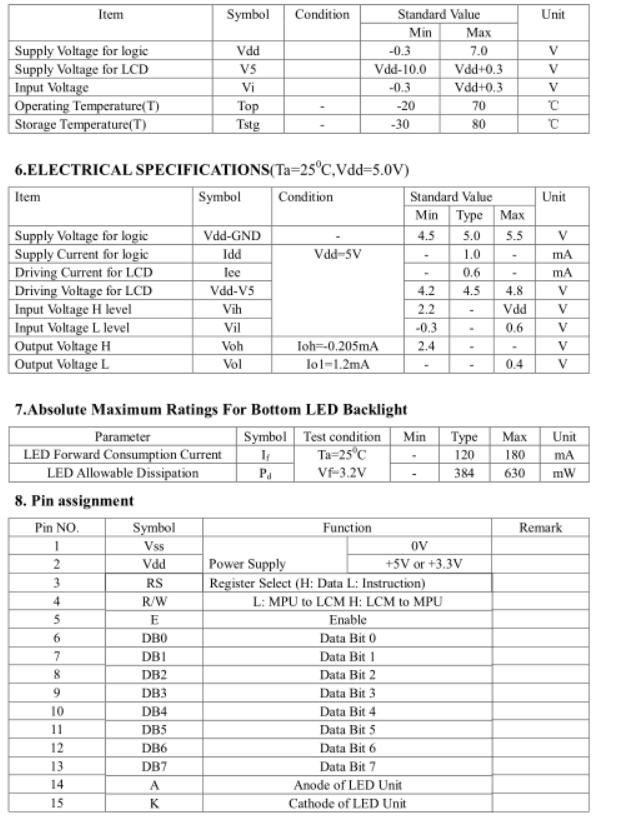

POWER： +5V or +3.3V
